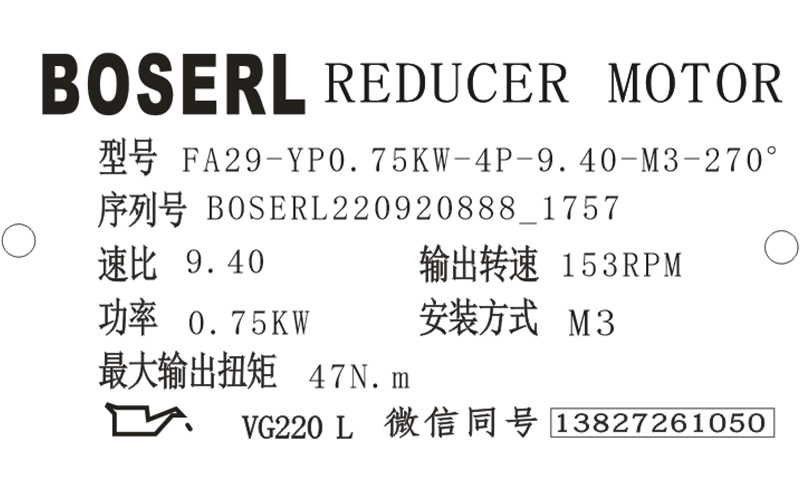

FA29減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F29減速機選型樣本。

FA29-YP0.75KW-4P-9.40-M3-270°

FA：系列代號

29：減速機規格代號

YP：電機

0.75KW：電機功率

4P：電機級數

9.40：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

FA29減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA29減速機的扭力臂安裝示意圖：齒輪減速電機

FA29減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA29減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA29減速機型號：

AFA27-Y0.12KW，AFA27-Y0.18KW，AFA27-Y0.25KW，AFA27-Y0.37KW，AFA27-Y0.55KW，AFA27-Y0.75KW，AFA27-Y1.1KW，AFA27-Y1.5KW，AFA27-Y2.2KW，AFA27-Y3KW，AFA27-YB100M4，AFA27-YB63M4，AFA27-YB71M4，AFA27-YB80M4，AFA27-YB90M4，AFA27-YDP100M4，AFA27-YDP63M4，AFA27-YDP71M4，AFA27-YDP80M4，AFA27-YDP90M4，AFA27-YE100M4，AFA27-YE63M4，AFA27-YE71M4，AFA27-YE80M4，AFA27-YE90M4，AFA27-YEJ100M4，AFA27-YEJ63M4，AFA27-YEJ71M4，AFA27-YEJ80M4，AFA27-YEJ90M4，AFA27-YEJB100M4，AFA27-YEJB63M4，AFA27-YEJB71M4，AFA27-YEJB80M4，AFA27-YEJB90M4，AFA27-YP100M4，AFA27-YP63M4，AFA27-YP71M4，AFA27-YP80M4，AFA27-YP90M4，AFA27-YPB100M4，AFA27-YPB63M4，AFA27-YPB71M4，AFA27-YPB80M4，AFA27-YPB90M4，AFA27-YPE100M4，AFA27-YPE63M4，AFA27-YPE71M4，AFA27-YPE80M4，AFA27-YPE90M4，AFA27-YS100M4，AFA27-YS63M4，AFA27-YS71M4，AFA27-YS80M4，AFA27-YS90M4，AFA27-YVB100M4，AFA27-YVB63M4，AFA27-YVB71M4，AFA27-YVB80M4，AFA27-YVB90M4，AFA27-YVP100M4，AFA27-YVP63M4，AFA27-YVP71M4，AFA27-YVP80M4，AFA27-YVP90M4，AFA27-YVPEJ100M4，AFA27-YVPEJ63M4，AFA27-YVPEJ71M4，AFA27-YVPEJ80M4，AFA27-YVPEJ90M4，AFA27-Y63M4，AFA27-Y71M4，AFA27-Y80M4，AFA27-Y90M4，AFA27-Y100M4，NFA27-Y0.12KW，NFA27-Y0.18KW，NFA27-Y0.25KW，NFA27-Y0.37KW，NFA27-Y0.55KW，NFA27-Y0.75KW，NFA27-Y1.1KW，NFA27-Y1.5KW，NFA27-Y2.2KW，NFA27-Y3KW，NFA27-YB100M4，NFA27-YB63M4，NFA27-YB71M4，NFA27-YB80M4，NFA27-YB90M4，NFA27-YDP100M4，NFA27-YDP63M4，NFA27-YDP71M4，NFA27-YDP80M4，NFA27-YDP90M4，NFA27-YE100M4，NFA27-YE63M4，NFA27-YE71M4，NFA27-YE80M4，NFA27-YE90M4，NFA27-YEJ100M4，NFA27-YEJ63M4，NFA27-YEJ71M4，NFA27-YEJ80M4，NFA27-YEJ90M4，NFA27-YEJB100M4，NFA27-YEJB63M4，NFA27-YEJB71M4，NFA27-YEJB80M4，NFA27-YEJB90M4，NFA27-YP100M4，NFA27-YP63M4，NFA27-YP71M4，NFA27-YP80M4，NFA27-YP90M4，NFA27-YPB100M4，NFA27-YPB63M4，NFA27-YPB71M4，NFA27-YPB80M4，NFA27-YPB90M4，NFA27-YPE100M4，NFA27-YPE63M4，NFA27-YPE71M4，NFA27-YPE80M4，NFA27-YPE90M4，NFA27-YS100M4，NFA27-YS63M4，NFA27-YS71M4，NFA27-YS80M4，NFA27-YS90M4，NFA27-YVB100M4，NFA27-YVB63M4，NFA27-YVB71M4，NFA27-YVB80M4，NFA27-YVB90M4，NFA27-YVP100M4，NFA27-YVP63M4，NFA27-YVP71M4，NFA27-YVP80M4，NFA27-YVP90M4，NFA27-YVPEJ100M4，NFA27-YVPEJ63M4，NFA27-YVPEJ71M4，NFA27-YVPEJ80M4，NFA27-YVPEJ90M4，NFA27-Y63M4，NFA27-Y71M4，NFA27-Y80M4，NFA27-Y90M4，NFA27-Y100M4，WFA27-Y0.12KW，WFA27-Y0.18KW，WFA27-Y0.25KW，WFA27-Y0.37KW，WFA27-Y0.55KW，WFA27-Y0.75KW，WFA27-Y1.1KW，WFA27-Y1.5KW，WFA27-Y2.2KW，WFA27-Y3KW，WFA27-YB100M4，WFA27-YB63M4，WFA27-YB71M4，WFA27-YB80M4，WFA27-YB90M4，WFA27-YDP100M4，WFA27-YDP63M4，WFA27-YDP71M4，WFA27-YDP80M4，WFA27-YDP90M4，WFA27-YE100M4，WFA27-YE63M4，WFA27-YE71M4，WFA27-YE80M4，WFA27-YE90M4，WFA27-YEJ100M4，WFA27-YEJ63M4，WFA27-YEJ71M4，WFA27-YEJ80M4，WFA27-YEJ90M4，WFA27-YEJB100M4，WFA27-YEJB63M4，WFA27-YEJB71M4，WFA27-YEJB80M4，WFA27-YEJB90M4，WFA27-YP100M4，WFA27-YP63M4，WFA27-YP71M4，WFA27-YP80M4，WFA27-YP90M4，WFA27-YPB100M4，WFA27-YPB63M4，WFA27-YPB71M4，WFA27-YPB80M4，WFA27-YPB90M4，WFA27-YPE100M4，WFA27-YPE63M4，WFA27-YPE71M4，WFA27-YPE80M4，WFA27-YPE90M4，WFA27-YS100M4，WFA27-YS63M4，WFA27-YS71M4，WFA27-YS80M4，WFA27-YS90M4，WFA27-YVB100M4，WFA27-YVB63M4，WFA27-YVB71M4，WFA27-YVB80M4，WFA27-YVB90M4，WFA27-YVP100M4，WFA27-YVP63M4，WFA27-YVP71M4，WFA27-YVP80M4，WFA27-YVP90M4，WFA27-YVPEJ100M4，WFA27-YVPEJ63M4，WFA27-YVPEJ71M4，WFA27-YVPEJ80M4，WFA27-YVPEJ90M4，WFA27-Y63M4，WFA27-Y71M4，WFA27-Y80M4，WFA27-Y90M4，WFA27-Y100M4，SFA27-Y0.12KW，SFA27-Y0.18KW，SFA27-Y0.25KW，SFA27-Y0.37KW，SFA27-Y0.55KW，SFA27-Y0.75KW，SFA27-Y1.1KW，SFA27-Y1.5KW，SFA27-Y2.2KW，SFA27-Y3KW，SFA27-YB100M4，SFA27-YB63M4，SFA27-YB71M4，SFA27-YB80M4，SFA27-YB90M4，SFA27-YDP100M4，SFA27-YDP63M4，SFA27-YDP71M4，SFA27-YDP80M4，SFA27-YDP90M4，SFA27-YE100M4，SFA27-YE63M4，SFA27-YE71M4，SFA27-YE80M4，SFA27-YE90M4，SFA27-YEJ100M4，SFA27-YEJ63M4，SFA27-YEJ71M4，SFA27-YEJ80M4，SFA27-YEJ90M4，SFA27-YEJB100M4，SFA27-YEJB63M4，SFA27-YEJB71M4，SFA27-YEJB80M4，SFA27-YEJB90M4，SFA27-YP100M4，SFA27-YP63M4，SFA27-YP71M4，SFA27-YP80M4，SFA27-YP90M4，SFA27-YPB100M4，SFA27-YPB63M4，SFA27-YPB71M4，SFA27-YPB80M4，SFA27-YPB90M4，SFA27-YPE100M4，SFA27-YPE63M4，SFA27-YPE71M4，SFA27-YPE80M4，SFA27-YPE90M4，SFA27-YS100M4，SFA27-YS63M4，SFA27-YS71M4，SFA27-YS80M4，SFA27-YS90M4，SFA27-YVB100M4，SFA27-YVB63M4，SFA27-YVB71M4，SFA27-YVB80M4，SFA27-YVB90M4，SFA27-YVP100M4，SFA27-YVP63M4，SFA27-YVP71M4，SFA27-YVP80M4，SFA27-YVP90M4，SFA27-YVPEJ100M4，SFA27-YVPEJ63M4，SFA27-YVPEJ71M4，SFA27-YVPEJ80M4，SFA27-YVPEJ90M4，SFA27-Y63M4，SFA27-Y71M4，SFA27-Y80M4，SFA27-Y90M4，SFA27-Y100M4，GFA29-Y0.12KW，GFA29-Y0.18KW，GFA29-Y0.25KW，GFA29-Y0.37KW，GFA29-Y0.55KW，GFA29-Y0.75KW，GFA29-Y1.1KW，GFA29-Y1.5KW，GFA29-Y2.2KW，GFA29-Y3KW，GFA29-YB100M4，GFA29-YB63M4，GFA29-YB71M4，GFA29-YB80M4，GFA29-YB90M4，GFA29-YDP100M4，GFA29-YDP63M4，GFA29-YDP71M4，GFA29-YDP80M4，GFA29-YDP90M4，GFA29-YE100M4，GFA29-YE63M4，GFA29-YE71M4，GFA29-YE80M4，GFA29-YE90M4，GFA29-YEJ100M4，GFA29-YEJ63M4，GFA29-YEJ71M4，GFA29-YEJ80M4，GFA29-YEJ90M4，GFA29-YEJB100M4，GFA29-YEJB63M4，GFA29-YEJB71M4，GFA29-YEJB80M4，GFA29-YEJB90M4，GFA29-YP100M4，GFA29-YP63M4，GFA29-YP71M4，GFA29-YP80M4，GFA29-YP90M4，GFA29-YPB100M4，GFA29-YPB63M4，GFA29-YPB71M4，GFA29-YPB80M4，GFA29-YPB90M4，GFA29-YPE100M4，GFA29-YPE63M4，GFA29-YPE71M4，GFA29-YPE80M4，GFA29-YPE90M4，GFA29-YS100M4，GFA29-YS63M4，GFA29-YS71M4，GFA29-YS80M4，GFA29-YS90M4，GFA29-YVB100M4，GFA29-YVB63M4，GFA29-YVB71M4，GFA29-YVB80M4，GFA29-YVB90M4，GFA29-YVP100M4，GFA29-YVP63M4，GFA29-YVP71M4，GFA29-YVP80M4，GFA29-YVP90M4，GFA29-YVPEJ100M4，GFA29-YVPEJ63M4，GFA29-YVPEJ71M4，GFA29-YVPEJ80M4，GFA29-YVPEJ90M4，GFA29-Y63M4，GFA29-Y71M4，GFA29-Y80M4，GFA29-Y90M4，GFA29-Y100M4。

FA29減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F29減速機
