F129R89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F129R89減速機選型樣本。

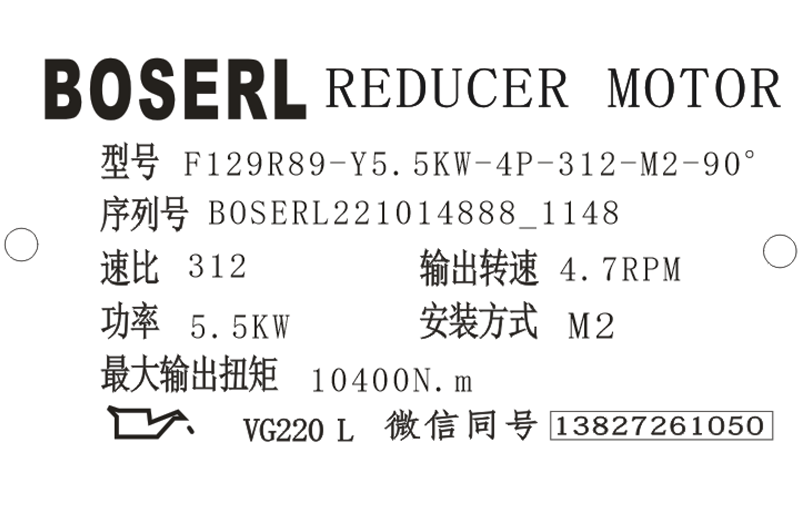

F129R89-Y5.5KW-4P-312-M2-90°

F/R：系列代號

129/89：減速機規格代號

Y：電機

5.5KW：電機功率

4P：電機級數

312：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

F129R89減速機電機拆解結構圖：F129R89減速機電機怎么拆？請看下圖。下列示圖為F129R89減速機電機結構原理圖，示圖僅作零件清單的歸類用途。根據電機的規格和設計型號的不同可能存在的偏差！平行軸斜齒輪減速機

F129R89減速機電機危險操作行為示警：

運行過程中，需要相應的防護措施，避免由于電機可能帶電、裸露、移動或者旋轉部件及高溫表面可能產生的危險。齒輪減速電機

請勿在爆炸環境中使用。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。(若確實有需要，請選擇防爆型電機)。

搬運、安裝、接線、運轉·操作、保養·檢查、故障診斷等作業，請具有專門知識和技能者實施。否則有可能會導致爆炸、著火、火災、觸電、受傷、裝置損壞等。

請勿在通電狀態下進行移動、安裝、接線和檢查作業。請務必切斷電源后再操作。否則有可能會導致觸電。

用于人員輸送或升降裝置時，請在裝置側設置安全保護裝置。否則，可能會因失控和墜落而導致人身事故以及裝置損壞。

制動器上請勿粘附水以及油類。否則，可能會因制動扭矩的降低而導致墜落、失控等事故。

減速電機的檢修需要熟練技術，請務必返送回本公司的專門工廠。F系列減速機

F129R89減速電機型號：

YQF127R87-Y11KW，YQF127R87-Y132M4，YQF127R87-Y160M4，YQF127R87-Y5.5KW，YQF127R87-Y7.5KW，YQF127RF87-Y132M4，YQF127RF87-Y160M4，YQF127RF87-YB132M4，YQF127RF87-YB160M4，YQF127RF87-YDP132M4，YQF127RF87-YDP160M4，YQF127RF87-YE132M4，YQF127RF87-YE160M4，YQF127RF87-YEJ132M4，YQF127RF87-YEJ160M4，YQF127RF87-YEJB132M4，YQF127RF87-YEJB160M4，YQF127RF87-YP132M4，YQF127RF87-YP160M4，YQF127RF87-YPB132M4，YQF127RF87-YPB160M4，YQF127RF87-YPE132M4，YQF127RF87-YPE160M4，YQF127RF87-YS132M4，YQF127RF87-YS160M4，YQF127RF87-YVB132M4，YQF127RF87-YVB160M4，YQF127RF87-YVP132M4，YQF127RF87-YVP160M4，YQF127RF87-YVPEJ132M4，YQF127RF87-YVPEJ160M4，NF127R87-Y11KW，NF127R87-Y132M4，NF127R87-Y160M4，NF127R87-Y5.5KW，NF127R87-Y7.5KW，NF127RF87-Y132M4，NF127RF87-Y160M4，NF127RF87-YB132M4，NF127RF87-YB160M4，NF127RF87-YDP132M4，NF127RF87-YDP160M4，NF127RF87-YE132M4，NF127RF87-YE160M4，NF127RF87-YEJ132M4，NF127RF87-YEJ160M4，NF127RF87-YEJB132M4，NF127RF87-YEJB160M4，NF127RF87-YP132M4，NF127RF87-YP160M4，NF127RF87-YPB132M4，NF127RF87-YPB160M4，NF127RF87-YPE132M4，NF127RF87-YPE160M4，NF127RF87-YS132M4，NF127RF87-YS160M4，NF127RF87-YVB132M4，NF127RF87-YVB160M4，NF127RF87-YVP132M4，NF127RF87-YVP160M4，NF127RF87-YVPEJ132M4，NF127RF87-YVPEJ160M4，AF127R87-Y11KW，AF127R87-Y132M4，AF127R87-Y160M4，AF127R87-Y5.5KW，AF127R87-Y7.5KW，AF127RF87-Y132M4，AF127RF87-Y160M4，AF127RF87-YB132M4，AF127RF87-YB160M4，AF127RF87-YDP132M4，AF127RF87-YDP160M4，AF127RF87-YE132M4，AF127RF87-YE160M4，AF127RF87-YEJ132M4，AF127RF87-YEJ160M4，AF127RF87-YEJB132M4，AF127RF87-YEJB160M4，AF127RF87-YP132M4，AF127RF87-YP160M4，AF127RF87-YPB132M4，AF127RF87-YPB160M4，AF127RF87-YPE132M4，AF127RF87-YPE160M4，AF127RF87-YS132M4，AF127RF87-YS160M4，AF127RF87-YVB132M4，AF127RF87-YVB160M4，AF127RF87-YVP132M4，AF127RF87-YVP160M4，AF127RF87-YVPEJ132M4，AF127RF87-YVPEJ160M4，XDF127R87-Y11KW，XDF127R87-Y132M4，XDF127R87-Y160M4，XDF127R87-Y5.5KW，XDF127R87-Y7.5KW，XDF127RF87-Y132M4，XDF127RF87-Y160M4，XDF127RF87-YB132M4，XDF127RF87-YB160M4，XDF127RF87-YDP132M4，XDF127RF87-YDP160M4，XDF127RF87-YE132M4，XDF127RF87-YE160M4，XDF127RF87-YEJ132M4，XDF127RF87-YEJ160M4，XDF127RF87-YEJB132M4，XDF127RF87-YEJB160M4，XDF127RF87-YP132M4，XDF127RF87-YP160M4，XDF127RF87-YPB132M4，XDF127RF87-YPB160M4，XDF127RF87-YPE132M4，XDF127RF87-YPE160M4，XDF127RF87-YS132M4，XDF127RF87-YS160M4，XDF127RF87-YVB132M4，XDF127RF87-YVB160M4，XDF127RF87-YVP132M4，XDF127RF87-YVP160M4，XDF127RF87-YVPEJ132M4，XDF127RF87-YVPEJ160M4，JCF127R87-Y11KW，JCF127R87-Y132M4，JCF127R87-Y160M4，JCF127R87-Y5.5KW，JCF127R87-Y7.5KW，JCF127RF87-Y132M4，JCF127RF87-Y160M4，JCF127RF87-YB132M4，JCF127RF87-YB160M4，JCF127RF87-YDP132M4，JCF127RF87-YDP160M4，JCF127RF87-YE132M4，JCF127RF87-YE160M4，JCF127RF87-YEJ132M4，JCF127RF87-YEJ160M4，JCF127RF87-YEJB132M4，JCF127RF87-YEJB160M4，JCF127RF87-YP132M4，JCF127RF87-YP160M4，JCF127RF87-YPB132M4，JCF127RF87-YPB160M4，JCF127RF87-YPE132M4，JCF127RF87-YPE160M4，JCF127RF87-YS132M4，JCF127RF87-YS160M4，JCF127RF87-YVB132M4，JCF127RF87-YVB160M4，JCF127RF87-YVP132M4，JCF127RF87-YVP160M4，JCF127RF87-YVPEJ132M4，JCF127RF87-YVPEJ160M4，SF127R87-Y11KW，SF127R87-Y132M4，SF127R87-Y160M4，SF127R87-Y5.5KW，SF127R87-Y7.5KW，SF127RF87-Y132M4，SF127RF87-Y160M4，SF127RF87-YB132M4，SF127RF87-YB160M4，SF127RF87-YDP132M4，SF127RF87-YDP160M4，SF127RF87-YE132M4，SF127RF87-YE160M4，SF127RF87-YEJ132M4，SF127RF87-YEJ160M4，SF127RF87-YEJB132M4，SF127RF87-YEJB160M4，SF127RF87-YP132M4，SF127RF87-YP160M4，SF127RF87-YPB132M4，SF127RF87-YPB160M4，SF127RF87-YPE132M4，SF127RF87-YPE160M4，SF127RF87-YS132M4，SF127RF87-YS160M4，SF127RF87-YVB132M4，SF127RF87-YVB160M4，SF127RF87-YVP132M4，SF127RF87-YVP160M4，SF127RF87-YVPEJ132M4，SF127RF87-YVPEJ160M4，WF127R87-Y11KW，WF127R87-Y132M4，WF127R87-Y160M4，WF127R87-Y5.5KW，WF127R87-Y7.5KW，WF127RF87-Y132M4，WF127RF87-Y160M4，WF127RF87-YB132M4，WF127RF87-YB160M4，WF127RF87-YDP132M4，WF127RF87-YDP160M4，WF127RF87-YE132M4，WF127RF87-YE160M4，WF127RF87-YEJ132M4，WF127RF87-YEJ160M4，WF127RF87-YEJB132M4，WF127RF87-YEJB160M4，WF127RF87-YP132M4，WF127RF87-YP160M4，WF127RF87-YPB132M4，WF127RF87-YPB160M4，WF127RF87-YPE132M4，WF127RF87-YPE160M4，WF127RF87-YS132M4，WF127RF87-YS160M4，WF127RF87-YVB132M4，WF127RF87-YVB160M4，WF127RF87-YVP132M4，WF127RF87-YVP160M4，WF127RF87-YVPEJ132M4，WF127RF87-YVPEJ160M4，F(xiàn)W127RW87-Y11KW，F(xiàn)W127RW87-Y132M4，F(xiàn)W127RW87-Y160M4，F(xiàn)W127RW87-Y5.5KW，F(xiàn)W127RW87-Y7.5KW，F(xiàn)W127RWF87-Y132M4，F(xiàn)W127RWF87-Y160M4，F(xiàn)W127RWF87-YB132M4，F(xiàn)W127RWF87-YB160M4，F(xiàn)W127RWF87-YDP132M4，F(xiàn)W127RWF87-YDP160M4，F(xiàn)W127RWF87-YE132M4，F(xiàn)W127RWF87-YE160M4，F(xiàn)W127RWF87-YEJ132M4，F(xiàn)W127RWF87-YEJ160M4，F(xiàn)W127RWF87-YEJB132M4，F(xiàn)W127RWF87-YEJB160M4，F(xiàn)W127RWF87-YP132M4，F(xiàn)W127RWF87-YP160M4，F(xiàn)W127RWF87-YPB132M4，F(xiàn)W127RWF87-YPB160M4，F(xiàn)W127RWF87-YPE132M4，F(xiàn)W127RWF87-YPE160M4，F(xiàn)W127RWF87-YS132M4，F(xiàn)W127RWF87-YS160M4，F(xiàn)W127RWF87-YVB132M4，F(xiàn)W127RWF87-YVB160M4，F(xiàn)W127RWF87-YVP132M4，F(xiàn)W127RWF87-YVP160M4，F(xiàn)W127RWF87-YVPEJ132M4，F(xiàn)W127RWF87-YVPEJ160M4，F(xiàn)129R89-Y11KW，F(xiàn)129R89-Y132M4，F(xiàn)129R89-Y160M4，F(xiàn)129R89-Y5.5KW，F(xiàn)129R89-Y7.5KW，F(xiàn)129RF89-Y132M4，F(xiàn)129RF89-Y160M4，F(xiàn)129RF89-YB132M4，F(xiàn)129RF89-YB160M4，F(xiàn)129RF89-YDP132M4，F(xiàn)129RF89-YDP160M4，F(xiàn)129RF89-YE132M4，F(xiàn)129RF89-YE160M4，F(xiàn)129RF89-YEJ132M4，F(xiàn)129RF89-YEJ160M4，F(xiàn)129RF89-YEJB132M4，F(xiàn)129RF89-YEJB160M4，F(xiàn)129RF89-YP132M4，F(xiàn)129RF89-YP160M4，F(xiàn)129RF89-YPB132M4，F(xiàn)129RF89-YPB160M4，F(xiàn)129RF89-YPE132M4，F(xiàn)129RF89-YPE160M4，F(xiàn)129RF89-YS132M4，F(xiàn)129RF89-YS160M4，F(xiàn)129RF89-YVB132M4，F(xiàn)129RF89-YVB160M4，F(xiàn)129RF89-YVP132M4，F(xiàn)129RF89-YVP160M4，F(xiàn)129RF89-YVPEJ132M4，F(xiàn)129RF89-YVPEJ160M4。

F129R89減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-fxiliejiansuji-cn.html

推薦型號：F129減速機
