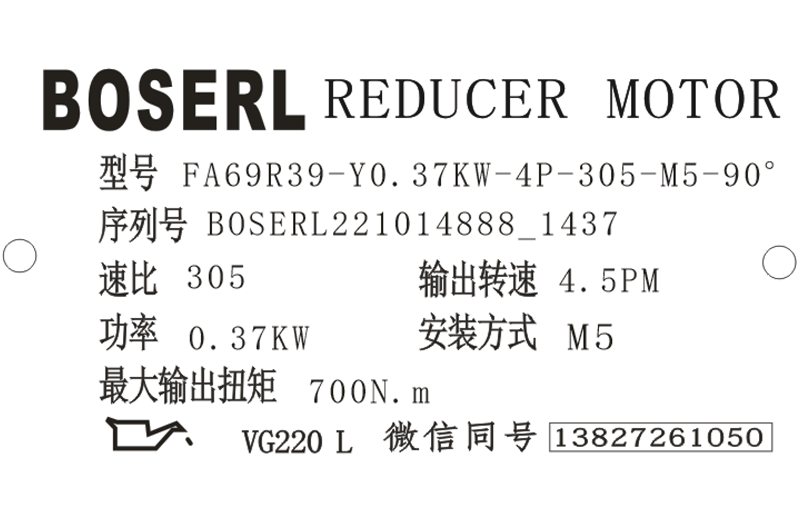

FA69R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA69R39減速機選型樣本。

FA69R39-Y0.37KW-4P-305-M5-90°

FA/R：系列代號

69/39：減速機規格代號

Y：電機

0.37KW：電機功率

4P：電機級數

305：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

FA69R39減速機電機使用環境要求：

環境溫度-5~40C；環境濕度85%；海拔高度1000m以下。齒輪減速電機

請勿在爆炸環境、易燃性氣體環境、腐蝕性環境以及漏水的環境下使用此減速電機；

請勿強行彎曲、拉扯或夾住電源、電纜線和電機導線；

電機安裝完成后，必須使用接地線良好接地，接地線位置位于接線盒上面；

安裝、連接、檢查等須由專業技術人員進行；

安裝環境需干燥且通風良好，周圍溫度-5~40℃之間若需高溫或低溫環境下運行，請特別說明；

齒輪減速電機需安裝在平整且堅固的機座上。

備注：大部分電機在50Hz交流電下的聲壓級都不超過70dB(A)。平行軸斜齒輪減速機

FA69R39減速機電機使用使用前事項：

收貨后：請立即檢查有無運輸損壞。如有損壞請立即通知運輸公司。必要情況下不得對設備進行調試運行；請檢查產品型號、電機功率、電機額定電壓、安裝方式及出力軸尺寸是否符合要求，如有不符請及時與廠家或經銷商聯系，以便及時處理。

請根據接線盒內的接線圖或者使用說明書與電源電纜進行連接。否則有可能會導致觸電和火災。

請勿過分彎曲、牽拉、夾持電源電纜以及電機導線。否則有可能會導致觸電。請將接地用端子切實接地。否則有可能會導致觸電。

請務必使用銘牌上記載的電源。否則有可能會損壞電機、引發火災。分體減速機電機

FA69R39減速電機型號：

YQFA67R37-Y0.12KW，YQFA67R37-Y0.18KW，YQFA67R37-Y0.25KW，YQFA67R37-Y0.37KW，YQFA67R37-Y0.55KW，YQFA67R37-Y0.75KW，YQFA67R37-Y63M4，YQFA67R37-Y71M4，YQFA67R37-Y80M4，YQFA67RF37-Y63M4，YQFA67RF37-Y71M4，YQFA67RF37-Y80M4，YQFA67RF37-YB63M4，YQFA67RF37-YB71M4，YQFA67RF37-YB80M4，YQFA67RF37-YDP63M4，YQFA67RF37-YDP71M4，YQFA67RF37-YDP80M4，YQFA67RF37-YE63M4，YQFA67RF37-YE71M4，YQFA67RF37-YE80M4，YQFA67RF37-YEJ63M4，YQFA67RF37-YEJ71M4，YQFA67RF37-YEJ80M4，YQFA67RF37-YEJB63M4，YQFA67RF37-YEJB71M4，YQFA67RF37-YEJB80M4，YQFA67RF37-YP63M4，YQFA67RF37-YP71M4，YQFA67RF37-YP80M4，YQFA67RF37-YPB63M4，YQFA67RF37-YPB71M4，YQFA67RF37-YPB80M4，YQFA67RF37-YPE63M4，YQFA67RF37-YPE71M4，YQFA67RF37-YPE80M4，YQFA67RF37-YS63M4，YQFA67RF37-YS71M4，YQFA67RF37-YS80M4，YQFA67RF37-YVB63M4，YQFA67RF37-YVB71M4，YQFA67RF37-YVB80M4，YQFA67RF37-YVP63M4，YQFA67RF37-YVP71M4，YQFA67RF37-YVP80M4，YQFA67RF37-YVPEJ63M4，YQFA67RF37-YVPEJ71M4，YQFA67RF37-YVPEJ80M4，XDFA67R37-Y0.12KW，XDFA67R37-Y0.18KW，XDFA67R37-Y0.25KW，XDFA67R37-Y0.37KW，XDFA67R37-Y0.55KW，XDFA67R37-Y0.75KW，XDFA67R37-Y63M4，XDFA67R37-Y71M4，XDFA67R37-Y80M4，XDFA67RF37-Y63M4，XDFA67RF37-Y71M4，XDFA67RF37-Y80M4，XDFA67RF37-YB63M4，XDFA67RF37-YB71M4，XDFA67RF37-YB80M4，XDFA67RF37-YDP63M4，XDFA67RF37-YDP71M4，XDFA67RF37-YDP80M4，XDFA67RF37-YE63M4，XDFA67RF37-YE71M4，XDFA67RF37-YE80M4，XDFA67RF37-YEJ63M4，XDFA67RF37-YEJ71M4，XDFA67RF37-YEJ80M4，XDFA67RF37-YEJB63M4，XDFA67RF37-YEJB71M4，XDFA67RF37-YEJB80M4，XDFA67RF37-YP63M4，XDFA67RF37-YP71M4，XDFA67RF37-YP80M4，XDFA67RF37-YPB63M4，XDFA67RF37-YPB71M4，XDFA67RF37-YPB80M4，XDFA67RF37-YPE63M4，XDFA67RF37-YPE71M4，XDFA67RF37-YPE80M4，XDFA67RF37-YS63M4，XDFA67RF37-YS71M4，XDFA67RF37-YS80M4，XDFA67RF37-YVB63M4，XDFA67RF37-YVB71M4，XDFA67RF37-YVB80M4，XDFA67RF37-YVP63M4，XDFA67RF37-YVP71M4，XDFA67RF37-YVP80M4，XDFA67RF37-YVPEJ63M4，XDFA67RF37-YVPEJ71M4，XDFA67RF37-YVPEJ80M4，WFA67R37-Y0.12KW，WFA67R37-Y0.18KW，WFA67R37-Y0.25KW，WFA67R37-Y0.37KW，WFA67R37-Y0.55KW，WFA67R37-Y0.75KW，WFA67R37-Y63M4，WFA67R37-Y71M4，WFA67R37-Y80M4，WFA67RF37-Y63M4，WFA67RF37-Y71M4，WFA67RF37-Y80M4，WFA67RF37-YB63M4，WFA67RF37-YB71M4，WFA67RF37-YB80M4，WFA67RF37-YDP63M4，WFA67RF37-YDP71M4，WFA67RF37-YDP80M4，WFA67RF37-YE63M4，WFA67RF37-YE71M4，WFA67RF37-YE80M4，WFA67RF37-YEJ63M4，WFA67RF37-YEJ71M4，WFA67RF37-YEJ80M4，WFA67RF37-YEJB63M4，WFA67RF37-YEJB71M4，WFA67RF37-YEJB80M4，WFA67RF37-YP63M4，WFA67RF37-YP71M4，WFA67RF37-YP80M4，WFA67RF37-YPB63M4，WFA67RF37-YPB71M4，WFA67RF37-YPB80M4，WFA67RF37-YPE63M4，WFA67RF37-YPE71M4，WFA67RF37-YPE80M4，WFA67RF37-YS63M4，WFA67RF37-YS71M4，WFA67RF37-YS80M4，WFA67RF37-YVB63M4，WFA67RF37-YVB71M4，WFA67RF37-YVB80M4，WFA67RF37-YVP63M4，WFA67RF37-YVP71M4，WFA67RF37-YVP80M4，WFA67RF37-YVPEJ63M4，WFA67RF37-YVPEJ71M4，WFA67RF37-YVPEJ80M4，SFA67R37-Y0.12KW，SFA67R37-Y0.18KW，SFA67R37-Y0.25KW，SFA67R37-Y0.37KW，SFA67R37-Y0.55KW，SFA67R37-Y0.75KW，SFA67R37-Y63M4，SFA67R37-Y71M4，SFA67R37-Y80M4，SFA67RF37-Y63M4，SFA67RF37-Y71M4，SFA67RF37-Y80M4，SFA67RF37-YB63M4，SFA67RF37-YB71M4，SFA67RF37-YB80M4，SFA67RF37-YDP63M4，SFA67RF37-YDP71M4，SFA67RF37-YDP80M4，SFA67RF37-YE63M4，SFA67RF37-YE71M4，SFA67RF37-YE80M4，SFA67RF37-YEJ63M4，SFA67RF37-YEJ71M4，SFA67RF37-YEJ80M4，SFA67RF37-YEJB63M4，SFA67RF37-YEJB71M4，SFA67RF37-YEJB80M4，SFA67RF37-YP63M4，SFA67RF37-YP71M4，SFA67RF37-YP80M4，SFA67RF37-YPB63M4，SFA67RF37-YPB71M4，SFA67RF37-YPB80M4，SFA67RF37-YPE63M4，SFA67RF37-YPE71M4，SFA67RF37-YPE80M4，SFA67RF37-YS63M4，SFA67RF37-YS71M4，SFA67RF37-YS80M4，SFA67RF37-YVB63M4，SFA67RF37-YVB71M4，SFA67RF37-YVB80M4，SFA67RF37-YVP63M4，SFA67RF37-YVP71M4，SFA67RF37-YVP80M4，SFA67RF37-YVPEJ63M4，SFA67RF37-YVPEJ71M4，SFA67RF37-YVPEJ80M4，JCFA67R37-Y0.12KW，JCFA67R37-Y0.18KW，JCFA67R37-Y0.25KW，JCFA67R37-Y0.37KW，JCFA67R37-Y0.55KW，JCFA67R37-Y0.75KW，JCFA67R37-Y63M4，JCFA67R37-Y71M4，JCFA67R37-Y80M4，JCFA67RF37-Y63M4，JCFA67RF37-Y71M4，JCFA67RF37-Y80M4，JCFA67RF37-YB63M4，JCFA67RF37-YB71M4，JCFA67RF37-YB80M4，JCFA67RF37-YDP63M4，JCFA67RF37-YDP71M4，JCFA67RF37-YDP80M4，JCFA67RF37-YE63M4，JCFA67RF37-YE71M4，JCFA67RF37-YE80M4，JCFA67RF37-YEJ63M4，JCFA67RF37-YEJ71M4，JCFA67RF37-YEJ80M4，JCFA67RF37-YEJB63M4，JCFA67RF37-YEJB71M4，JCFA67RF37-YEJB80M4，JCFA67RF37-YP63M4，JCFA67RF37-YP71M4，JCFA67RF37-YP80M4，JCFA67RF37-YPB63M4，JCFA67RF37-YPB71M4，JCFA67RF37-YPB80M4，JCFA67RF37-YPE63M4，JCFA67RF37-YPE71M4，JCFA67RF37-YPE80M4，JCFA67RF37-YS63M4，JCFA67RF37-YS71M4，JCFA67RF37-YS80M4，JCFA67RF37-YVB63M4，JCFA67RF37-YVB71M4，JCFA67RF37-YVB80M4，JCFA67RF37-YVP63M4，JCFA67RF37-YVP71M4，JCFA67RF37-YVP80M4，JCFA67RF37-YVPEJ63M4，JCFA67RF37-YVPEJ71M4，JCFA67RF37-YVPEJ80M4，AFA67R37-Y0.12KW，AFA67R37-Y0.18KW，AFA67R37-Y0.25KW，AFA67R37-Y0.37KW，AFA67R37-Y0.55KW，AFA67R37-Y0.75KW，AFA67R37-Y63M4，AFA67R37-Y71M4，AFA67R37-Y80M4，AFA67RF37-Y63M4，AFA67RF37-Y71M4，AFA67RF37-Y80M4，AFA67RF37-YB63M4，AFA67RF37-YB71M4，AFA67RF37-YB80M4，AFA67RF37-YDP63M4，AFA67RF37-YDP71M4，AFA67RF37-YDP80M4，AFA67RF37-YE63M4，AFA67RF37-YE71M4，AFA67RF37-YE80M4，AFA67RF37-YEJ63M4，AFA67RF37-YEJ71M4，AFA67RF37-YEJ80M4，AFA67RF37-YEJB63M4，AFA67RF37-YEJB71M4，AFA67RF37-YEJB80M4，AFA67RF37-YP63M4，AFA67RF37-YP71M4，AFA67RF37-YP80M4，AFA67RF37-YPB63M4，AFA67RF37-YPB71M4，AFA67RF37-YPB80M4，AFA67RF37-YPE63M4，AFA67RF37-YPE71M4，AFA67RF37-YPE80M4，AFA67RF37-YS63M4，AFA67RF37-YS71M4，AFA67RF37-YS80M4，AFA67RF37-YVB63M4，AFA67RF37-YVB71M4，AFA67RF37-YVB80M4，AFA67RF37-YVP63M4，AFA67RF37-YVP71M4，AFA67RF37-YVP80M4，AFA67RF37-YVPEJ63M4，AFA67RF37-YVPEJ71M4，AFA67RF37-YVPEJ80M4，NFA67R37-Y0.12KW，NFA67R37-Y0.18KW，NFA67R37-Y0.25KW，NFA67R37-Y0.37KW，NFA67R37-Y0.55KW，NFA67R37-Y0.75KW，NFA67R37-Y63M4，NFA67R37-Y71M4，NFA67R37-Y80M4，NFA67RF37-Y63M4，NFA67RF37-Y71M4，NFA67RF37-Y80M4，NFA67RF37-YB63M4，NFA67RF37-YB71M4，NFA67RF37-YB80M4，NFA67RF37-YDP63M4，NFA67RF37-YDP71M4，NFA67RF37-YDP80M4，NFA67RF37-YE63M4，NFA67RF37-YE71M4，NFA67RF37-YE80M4，NFA67RF37-YEJ63M4，NFA67RF37-YEJ71M4，NFA67RF37-YEJ80M4，NFA67RF37-YEJB63M4，NFA67RF37-YEJB71M4，NFA67RF37-YEJB80M4，NFA67RF37-YP63M4，NFA67RF37-YP71M4，NFA67RF37-YP80M4，NFA67RF37-YPB63M4，NFA67RF37-YPB71M4，NFA67RF37-YPB80M4，NFA67RF37-YPE63M4，NFA67RF37-YPE71M4，NFA67RF37-YPE80M4，NFA67RF37-YS63M4，NFA67RF37-YS71M4，NFA67RF37-YS80M4，NFA67RF37-YVB63M4，NFA67RF37-YVB71M4，NFA67RF37-YVB80M4，NFA67RF37-YVP63M4，NFA67RF37-YVP71M4，NFA67RF37-YVP80M4，NFA67RF37-YVPEJ63M4，NFA67RF37-YVPEJ71M4，NFA67RF37-YVPEJ80M4，FWA67RW37-Y0.12KW，FWA67RW37-Y0.18KW，FWA67RW37-Y0.25KW，FWA67RW37-Y0.37KW，FWA67RW37-Y0.55KW，FWA67RW37-Y0.75KW，FWA67RW37-Y63M4，FWA67RW37-Y71M4，FWA67RW37-Y80M4，FWA67RWFA37-Y63M4，FWA67RWFA37-Y71M4，FWA67RWFA37-Y80M4，FWA67RWFA37-YB63M4，FWA67RWFA37-YB71M4，FWA67RWFA37-YB80M4，FWA67RWFA37-YDP63M4，FWA67RWFA37-YDP71M4，FWA67RWFA37-YDP80M4，FWA67RWFA37-YE63M4，FWA67RWFA37-YE71M4，FWA67RWFA37-YE80M4，FWA67RWFA37-YEJ63M4，FWA67RWFA37-YEJ71M4，FWA67RWFA37-YEJ80M4，FWA67RWFA37-YEJB63M4，FWA67RWFA37-YEJB71M4，FWA67RWFA37-YEJB80M4，FWA67RWFA37-YP63M4，FWA67RWFA37-YP71M4，FWA67RWFA37-YP80M4，FWA67RWFA37-YPB63M4，FWA67RWFA37-YPB71M4，FWA67RWFA37-YPB80M4，FWA67RWFA37-YPE63M4，FWA67RWFA37-YPE71M4，FWA67RWFA37-YPE80M4，FWA67RWFA37-YS63M4，FWA67RWFA37-YS71M4，FWA67RWFA37-YS80M4，FWA67RWFA37-YVB63M4，FWA67RWFA37-YVB71M4，FWA67RWFA37-YVB80M4，FWA67RWFA37-YVP63M4，FWA67RWFA37-YVP71M4，FWA67RWFA37-YVP80M4，FWA67RWFA37-YVPEJ63M4，FWA67RWFA37-YVPEJ71M4，FWA67RWFA37-YVPEJ80M4，FA69R39-Y0.12KW，FA69R39-Y0.18KW，FA69R39-Y0.25KW，FA69R39-Y0.39KW，FA69R39-Y0.55KW，FA69R39-Y0.75KW，FA69R39-Y63M4，FA69R39-Y71M4，FA69R39-Y80M4，FA69RF39-Y63M4，FA69RF39-Y71M4，FA69RF39-Y80M4，FA69RF39-YB63M4，FA69RF39-YB71M4，FA69RF39-YB80M4，FA69RF39-YDP63M4，FA69RF39-YDP71M4，FA69RF39-YDP80M4，FA69RF39-YE63M4，FA69RF39-YE71M4，FA69RF39-YE80M4，FA69RF39-YEJ63M4，FA69RF39-YEJ71M4，FA69RF39-YEJ80M4，FA69RF39-YEJB63M4，FA69RF39-YEJB71M4，FA69RF39-YEJB80M4，FA69RF39-YP63M4，FA69RF39-YP71M4，FA69RF39-YP80M4，FA69RF39-YPB63M4，FA69RF39-YPB71M4，FA69RF39-YPB80M4，FA69RF39-YPE63M4，FA69RF39-YPE71M4，FA69RF39-YPE80M4，FA69RF39-YS63M4，FA69RF39-YS71M4，FA69RF39-YS80M4，FA69RF39-YVB63M4，FA69RF39-YVB71M4，FA69RF39-YVB80M4，FA69RF39-YVP63M4，FA69RF39-YVP71M4，FA69RF39-YVP80M4，FA69RF39-YVPEJ63M4，FA69RF39-YVPEJ71M4，FA69RF39-YVPEJ80M4。

FA69R39減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-faxiliejiansuji-cn.html

推薦型號：F69減速機
