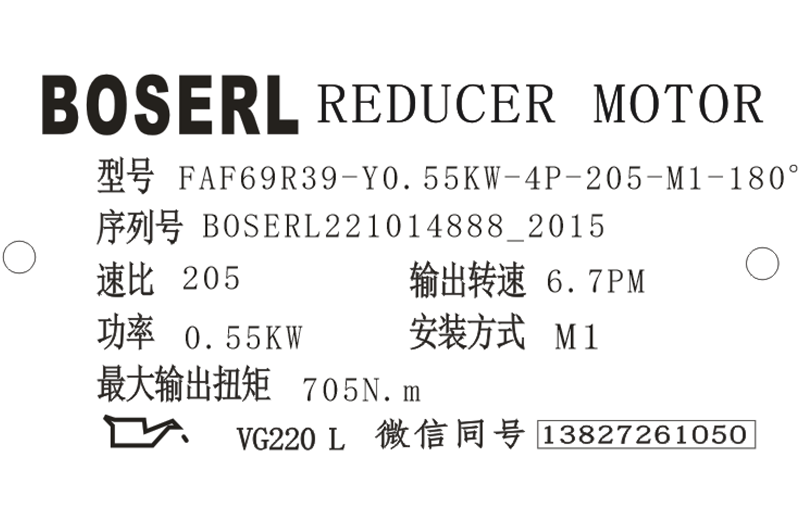

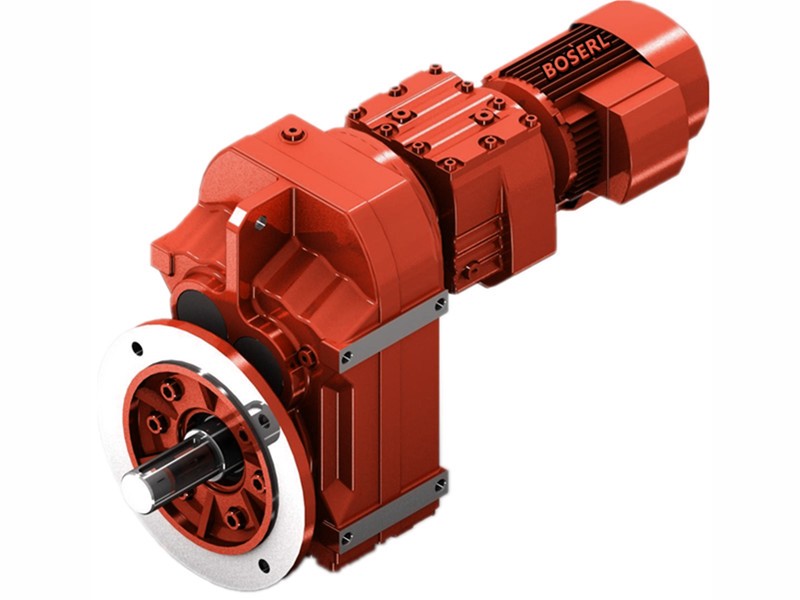

FAF69R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF69R39減速機選型樣本。

FAF69R39-Y0.55KW-4P-205-M1-180°

FAF/R：系列代號

69/39：減速機規格代號

Y：電機

0.55KW：電機功率

4P：電機級數

205：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

FAF69R39減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變三相電機的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

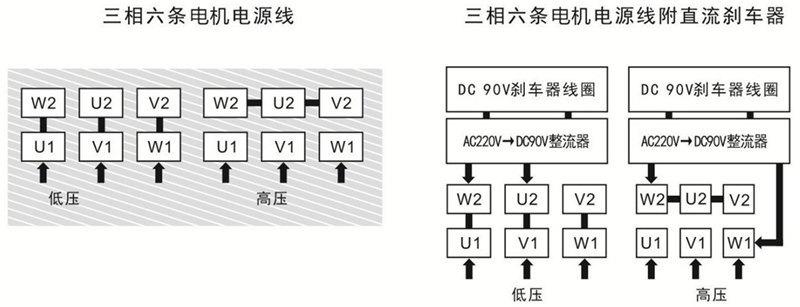

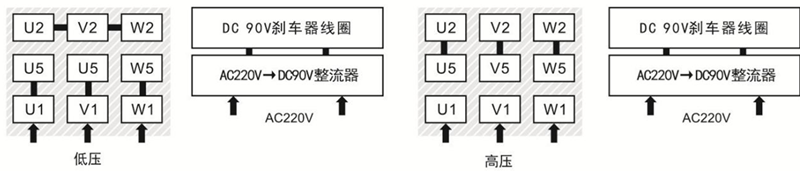

一、FAF69R39減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

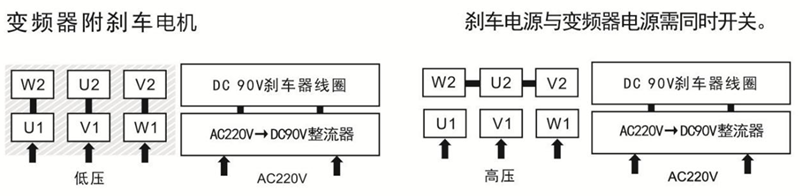

二、FAF69R39減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

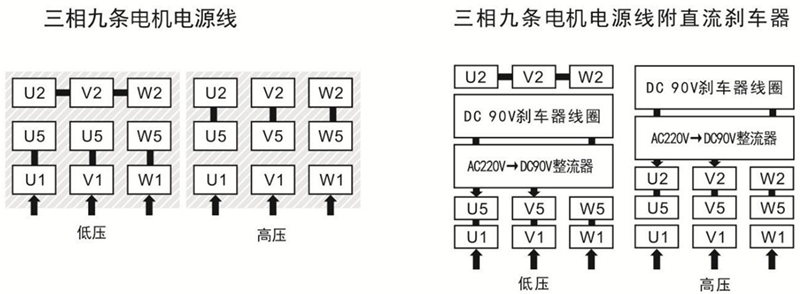

三、FAF69R39減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF69R39減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

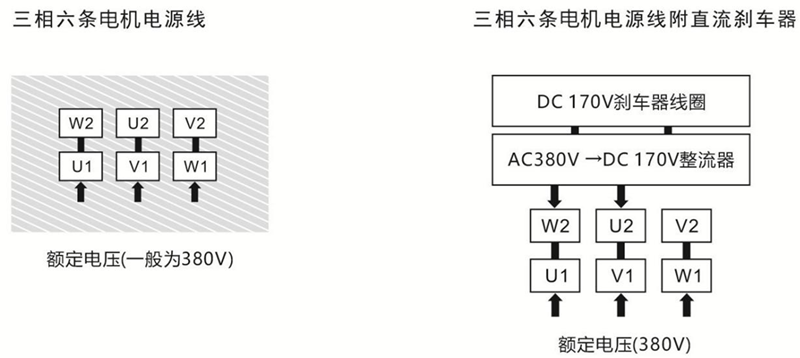

五、FAF69R39減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

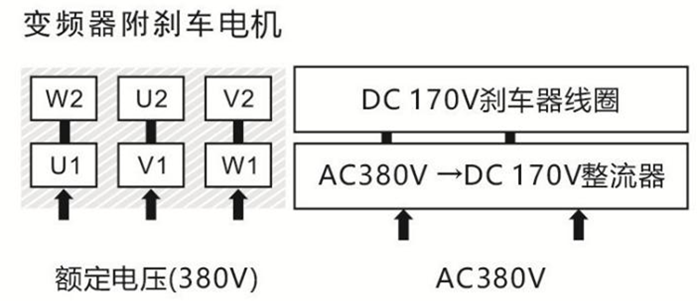

六、FAF69R39減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF69R39減速電機型號：

YQFAF67R37-Y0.12KW，YQFAF67R37-Y0.18KW，YQFAF67R37-Y0.25KW，YQFAF67R37-Y0.37KW，YQFAF67R37-Y0.55KW，YQFAF67R37-Y0.75KW，YQFAF67R37-Y63M4，YQFAF67R37-Y71M4，YQFAF67R37-Y80M4，YQFAF67RF37-Y63M4，YQFAF67RF37-Y71M4，YQFAF67RF37-Y80M4，YQFAF67RF37-YB63M4，YQFAF67RF37-YB71M4，YQFAF67RF37-YB80M4，YQFAF67RF37-YDP63M4，YQFAF67RF37-YDP71M4，YQFAF67RF37-YDP80M4，YQFAF67RF37-YE63M4，YQFAF67RF37-YE71M4，YQFAF67RF37-YE80M4，YQFAF67RF37-YEJ63M4，YQFAF67RF37-YEJ71M4，YQFAF67RF37-YEJ80M4，YQFAF67RF37-YEJB63M4，YQFAF67RF37-YEJB71M4，YQFAF67RF37-YEJB80M4，YQFAF67RF37-YP63M4，YQFAF67RF37-YP71M4，YQFAF67RF37-YP80M4，YQFAF67RF37-YPB63M4，YQFAF67RF37-YPB71M4，YQFAF67RF37-YPB80M4，YQFAF67RF37-YPE63M4，YQFAF67RF37-YPE71M4，YQFAF67RF37-YPE80M4，YQFAF67RF37-YS63M4，YQFAF67RF37-YS71M4，YQFAF67RF37-YS80M4，YQFAF67RF37-YVB63M4，YQFAF67RF37-YVB71M4，YQFAF67RF37-YVB80M4，YQFAF67RF37-YVP63M4，YQFAF67RF37-YVP71M4，YQFAF67RF37-YVP80M4，YQFAF67RF37-YVPEJ63M4，YQFAF67RF37-YVPEJ71M4，YQFAF67RF37-YVPEJ80M4，XDFAF67R37-Y0.12KW，XDFAF67R37-Y0.18KW，XDFAF67R37-Y0.25KW，XDFAF67R37-Y0.37KW，XDFAF67R37-Y0.55KW，XDFAF67R37-Y0.75KW，XDFAF67R37-Y63M4，XDFAF67R37-Y71M4，XDFAF67R37-Y80M4，XDFAF67RF37-Y63M4，XDFAF67RF37-Y71M4，XDFAF67RF37-Y80M4，XDFAF67RF37-YB63M4，XDFAF67RF37-YB71M4，XDFAF67RF37-YB80M4，XDFAF67RF37-YDP63M4，XDFAF67RF37-YDP71M4，XDFAF67RF37-YDP80M4，XDFAF67RF37-YE63M4，XDFAF67RF37-YE71M4，XDFAF67RF37-YE80M4，XDFAF67RF37-YEJ63M4，XDFAF67RF37-YEJ71M4，XDFAF67RF37-YEJ80M4，XDFAF67RF37-YEJB63M4，XDFAF67RF37-YEJB71M4，XDFAF67RF37-YEJB80M4，XDFAF67RF37-YP63M4，XDFAF67RF37-YP71M4，XDFAF67RF37-YP80M4，XDFAF67RF37-YPB63M4，XDFAF67RF37-YPB71M4，XDFAF67RF37-YPB80M4，XDFAF67RF37-YPE63M4，XDFAF67RF37-YPE71M4，XDFAF67RF37-YPE80M4，XDFAF67RF37-YS63M4，XDFAF67RF37-YS71M4，XDFAF67RF37-YS80M4，XDFAF67RF37-YVB63M4，XDFAF67RF37-YVB71M4，XDFAF67RF37-YVB80M4，XDFAF67RF37-YVP63M4，XDFAF67RF37-YVP71M4，XDFAF67RF37-YVP80M4，XDFAF67RF37-YVPEJ63M4，XDFAF67RF37-YVPEJ71M4，XDFAF67RF37-YVPEJ80M4，WFAF67R37-Y0.12KW，WFAF67R37-Y0.18KW，WFAF67R37-Y0.25KW，WFAF67R37-Y0.37KW，WFAF67R37-Y0.55KW，WFAF67R37-Y0.75KW，WFAF67R37-Y63M4，WFAF67R37-Y71M4，WFAF67R37-Y80M4，WFAF67RF37-Y63M4，WFAF67RF37-Y71M4，WFAF67RF37-Y80M4，WFAF67RF37-YB63M4，WFAF67RF37-YB71M4，WFAF67RF37-YB80M4，WFAF67RF37-YDP63M4，WFAF67RF37-YDP71M4，WFAF67RF37-YDP80M4，WFAF67RF37-YE63M4，WFAF67RF37-YE71M4，WFAF67RF37-YE80M4，WFAF67RF37-YEJ63M4，WFAF67RF37-YEJ71M4，WFAF67RF37-YEJ80M4，WFAF67RF37-YEJB63M4，WFAF67RF37-YEJB71M4，WFAF67RF37-YEJB80M4，WFAF67RF37-YP63M4，WFAF67RF37-YP71M4，WFAF67RF37-YP80M4，WFAF67RF37-YPB63M4，WFAF67RF37-YPB71M4，WFAF67RF37-YPB80M4，WFAF67RF37-YPE63M4，WFAF67RF37-YPE71M4，WFAF67RF37-YPE80M4，WFAF67RF37-YS63M4，WFAF67RF37-YS71M4，WFAF67RF37-YS80M4，WFAF67RF37-YVB63M4，WFAF67RF37-YVB71M4，WFAF67RF37-YVB80M4，WFAF67RF37-YVP63M4，WFAF67RF37-YVP71M4，WFAF67RF37-YVP80M4，WFAF67RF37-YVPEJ63M4，WFAF67RF37-YVPEJ71M4，WFAF67RF37-YVPEJ80M4，SFAF67R37-Y0.12KW，SFAF67R37-Y0.18KW，SFAF67R37-Y0.25KW，SFAF67R37-Y0.37KW，SFAF67R37-Y0.55KW，SFAF67R37-Y0.75KW，SFAF67R37-Y63M4，SFAF67R37-Y71M4，SFAF67R37-Y80M4，SFAF67RF37-Y63M4，SFAF67RF37-Y71M4，SFAF67RF37-Y80M4，SFAF67RF37-YB63M4，SFAF67RF37-YB71M4，SFAF67RF37-YB80M4，SFAF67RF37-YDP63M4，SFAF67RF37-YDP71M4，SFAF67RF37-YDP80M4，SFAF67RF37-YE63M4，SFAF67RF37-YE71M4，SFAF67RF37-YE80M4，SFAF67RF37-YEJ63M4，SFAF67RF37-YEJ71M4，SFAF67RF37-YEJ80M4，SFAF67RF37-YEJB63M4，SFAF67RF37-YEJB71M4，SFAF67RF37-YEJB80M4，SFAF67RF37-YP63M4，SFAF67RF37-YP71M4，SFAF67RF37-YP80M4，SFAF67RF37-YPB63M4，SFAF67RF37-YPB71M4，SFAF67RF37-YPB80M4，SFAF67RF37-YPE63M4，SFAF67RF37-YPE71M4，SFAF67RF37-YPE80M4，SFAF67RF37-YS63M4，SFAF67RF37-YS71M4，SFAF67RF37-YS80M4，SFAF67RF37-YVB63M4，SFAF67RF37-YVB71M4，SFAF67RF37-YVB80M4，SFAF67RF37-YVP63M4，SFAF67RF37-YVP71M4，SFAF67RF37-YVP80M4，SFAF67RF37-YVPEJ63M4，SFAF67RF37-YVPEJ71M4，SFAF67RF37-YVPEJ80M4，JCFAF67R37-Y0.12KW，JCFAF67R37-Y0.18KW，JCFAF67R37-Y0.25KW，JCFAF67R37-Y0.37KW，JCFAF67R37-Y0.55KW，JCFAF67R37-Y0.75KW，JCFAF67R37-Y63M4，JCFAF67R37-Y71M4，JCFAF67R37-Y80M4，JCFAF67RF37-Y63M4，JCFAF67RF37-Y71M4，JCFAF67RF37-Y80M4，JCFAF67RF37-YB63M4，JCFAF67RF37-YB71M4，JCFAF67RF37-YB80M4，JCFAF67RF37-YDP63M4，JCFAF67RF37-YDP71M4，JCFAF67RF37-YDP80M4，JCFAF67RF37-YE63M4，JCFAF67RF37-YE71M4，JCFAF67RF37-YE80M4，JCFAF67RF37-YEJ63M4，JCFAF67RF37-YEJ71M4，JCFAF67RF37-YEJ80M4，JCFAF67RF37-YEJB63M4，JCFAF67RF37-YEJB71M4，JCFAF67RF37-YEJB80M4，JCFAF67RF37-YP63M4，JCFAF67RF37-YP71M4，JCFAF67RF37-YP80M4，JCFAF67RF37-YPB63M4，JCFAF67RF37-YPB71M4，JCFAF67RF37-YPB80M4，JCFAF67RF37-YPE63M4，JCFAF67RF37-YPE71M4，JCFAF67RF37-YPE80M4，JCFAF67RF37-YS63M4，JCFAF67RF37-YS71M4，JCFAF67RF37-YS80M4，JCFAF67RF37-YVB63M4，JCFAF67RF37-YVB71M4，JCFAF67RF37-YVB80M4，JCFAF67RF37-YVP63M4，JCFAF67RF37-YVP71M4，JCFAF67RF37-YVP80M4，JCFAF67RF37-YVPEJ63M4，JCFAF67RF37-YVPEJ71M4，JCFAF67RF37-YVPEJ80M4，AFAF67R37-Y0.12KW，AFAF67R37-Y0.18KW，AFAF67R37-Y0.25KW，AFAF67R37-Y0.37KW，AFAF67R37-Y0.55KW，AFAF67R37-Y0.75KW，AFAF67R37-Y63M4，AFAF67R37-Y71M4，AFAF67R37-Y80M4，AFAF67RF37-Y63M4，AFAF67RF37-Y71M4，AFAF67RF37-Y80M4，AFAF67RF37-YB63M4，AFAF67RF37-YB71M4，AFAF67RF37-YB80M4，AFAF67RF37-YDP63M4，AFAF67RF37-YDP71M4，AFAF67RF37-YDP80M4，AFAF67RF37-YE63M4，AFAF67RF37-YE71M4，AFAF67RF37-YE80M4，AFAF67RF37-YEJ63M4，AFAF67RF37-YEJ71M4，AFAF67RF37-YEJ80M4，AFAF67RF37-YEJB63M4，AFAF67RF37-YEJB71M4，AFAF67RF37-YEJB80M4，AFAF67RF37-YP63M4，AFAF67RF37-YP71M4，AFAF67RF37-YP80M4，AFAF67RF37-YPB63M4，AFAF67RF37-YPB71M4，AFAF67RF37-YPB80M4，AFAF67RF37-YPE63M4，AFAF67RF37-YPE71M4，AFAF67RF37-YPE80M4，AFAF67RF37-YS63M4，AFAF67RF37-YS71M4，AFAF67RF37-YS80M4，AFAF67RF37-YVB63M4，AFAF67RF37-YVB71M4，AFAF67RF37-YVB80M4，AFAF67RF37-YVP63M4，AFAF67RF37-YVP71M4，AFAF67RF37-YVP80M4，AFAF67RF37-YVPEJ63M4，AFAF67RF37-YVPEJ71M4，AFAF67RF37-YVPEJ80M4，NFAF67R37-Y0.12KW，NFAF67R37-Y0.18KW，NFAF67R37-Y0.25KW，NFAF67R37-Y0.37KW，NFAF67R37-Y0.55KW，NFAF67R37-Y0.75KW，NFAF67R37-Y63M4，NFAF67R37-Y71M4，NFAF67R37-Y80M4，NFAF67RF37-Y63M4，NFAF67RF37-Y71M4，NFAF67RF37-Y80M4，NFAF67RF37-YB63M4，NFAF67RF37-YB71M4，NFAF67RF37-YB80M4，NFAF67RF37-YDP63M4，NFAF67RF37-YDP71M4，NFAF67RF37-YDP80M4，NFAF67RF37-YE63M4，NFAF67RF37-YE71M4，NFAF67RF37-YE80M4，NFAF67RF37-YEJ63M4，NFAF67RF37-YEJ71M4，NFAF67RF37-YEJ80M4，NFAF67RF37-YEJB63M4，NFAF67RF37-YEJB71M4，NFAF67RF37-YEJB80M4，NFAF67RF37-YP63M4，NFAF67RF37-YP71M4，NFAF67RF37-YP80M4，NFAF67RF37-YPB63M4，NFAF67RF37-YPB71M4，NFAF67RF37-YPB80M4，NFAF67RF37-YPE63M4，NFAF67RF37-YPE71M4，NFAF67RF37-YPE80M4，NFAF67RF37-YS63M4，NFAF67RF37-YS71M4，NFAF67RF37-YS80M4，NFAF67RF37-YVB63M4，NFAF67RF37-YVB71M4，NFAF67RF37-YVB80M4，NFAF67RF37-YVP63M4，NFAF67RF37-YVP71M4，NFAF67RF37-YVP80M4，NFAF67RF37-YVPEJ63M4，NFAF67RF37-YVPEJ71M4，NFAF67RF37-YVPEJ80M4，FWAF67RW37-Y0.12KW，FWAF67RW37-Y0.18KW，FWAF67RW37-Y0.25KW，FWAF67RW37-Y0.37KW，FWAF67RW37-Y0.55KW，FWAF67RW37-Y0.75KW，FWAF67RW37-Y63M4，FWAF67RW37-Y71M4，FWAF67RW37-Y80M4，FWAF67RWFAF37-Y63M4，FWAF67RWFAF37-Y71M4，FWAF67RWFAF37-Y80M4，FWAF67RWFAF37-YB63M4，FWAF67RWFAF37-YB71M4，FWAF67RWFAF37-YB80M4，FWAF67RWFAF37-YDP63M4，FWAF67RWFAF37-YDP71M4，FWAF67RWFAF37-YDP80M4，FWAF67RWFAF37-YE63M4，FWAF67RWFAF37-YE71M4，FWAF67RWFAF37-YE80M4，FWAF67RWFAF37-YEJ63M4，FWAF67RWFAF37-YEJ71M4，FWAF67RWFAF37-YEJ80M4，FWAF67RWFAF37-YEJB63M4，FWAF67RWFAF37-YEJB71M4，FWAF67RWFAF37-YEJB80M4，FWAF67RWFAF37-YP63M4，FWAF67RWFAF37-YP71M4，FWAF67RWFAF37-YP80M4，FWAF67RWFAF37-YPB63M4，FWAF67RWFAF37-YPB71M4，FWAF67RWFAF37-YPB80M4，FWAF67RWFAF37-YPE63M4，FWAF67RWFAF37-YPE71M4，FWAF67RWFAF37-YPE80M4，FWAF67RWFAF37-YS63M4，FWAF67RWFAF37-YS71M4，FWAF67RWFAF37-YS80M4，FWAF67RWFAF37-YVB63M4，FWAF67RWFAF37-YVB71M4，FWAF67RWFAF37-YVB80M4，FWAF67RWFAF37-YVP63M4，FWAF67RWFAF37-YVP71M4，FWAF67RWFAF37-YVP80M4，FWAF67RWFAF37-YVPEJ63M4，FWAF67RWFAF37-YVPEJ71M4，FWAF67RWFAF37-YVPEJ80M4，FAF69R39-Y0.12KW，FAF69R39-Y0.18KW，FAF69R39-Y0.25KW，FAF69R39-Y0.39KW，FAF69R39-Y0.55KW，FAF69R39-Y0.75KW，FAF69R39-Y63M4，FAF69R39-Y71M4，FAF69R39-Y80M4，FAF69RF39-Y63M4，FAF69RF39-Y71M4，FAF69RF39-Y80M4，FAF69RF39-YB63M4，FAF69RF39-YB71M4，FAF69RF39-YB80M4，FAF69RF39-YDP63M4，FAF69RF39-YDP71M4，FAF69RF39-YDP80M4，FAF69RF39-YE63M4，FAF69RF39-YE71M4，FAF69RF39-YE80M4，FAF69RF39-YEJ63M4，FAF69RF39-YEJ71M4，FAF69RF39-YEJ80M4，FAF69RF39-YEJB63M4，FAF69RF39-YEJB71M4，FAF69RF39-YEJB80M4，FAF69RF39-YP63M4，FAF69RF39-YP71M4，FAF69RF39-YP80M4，FAF69RF39-YPB63M4，FAF69RF39-YPB71M4，FAF69RF39-YPB80M4，FAF69RF39-YPE63M4，FAF69RF39-YPE71M4，FAF69RF39-YPE80M4，FAF69RF39-YS63M4，FAF69RF39-YS71M4，FAF69RF39-YS80M4，FAF69RF39-YVB63M4，FAF69RF39-YVB71M4，FAF69RF39-YVB80M4，FAF69RF39-YVP63M4，FAF69RF39-YVP71M4，FAF69RF39-YVP80M4，FAF69RF39-YVPEJ63M4，FAF69RF39-YVPEJ71M4，FAF69RF39-YVPEJ80M4。

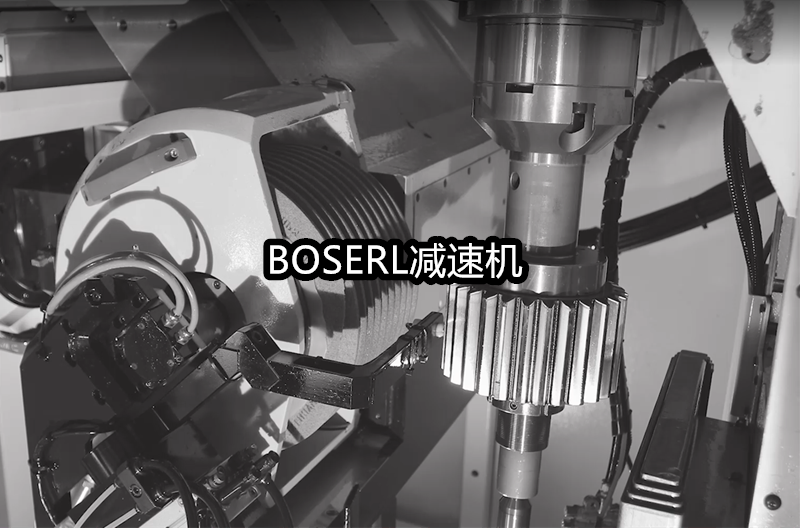

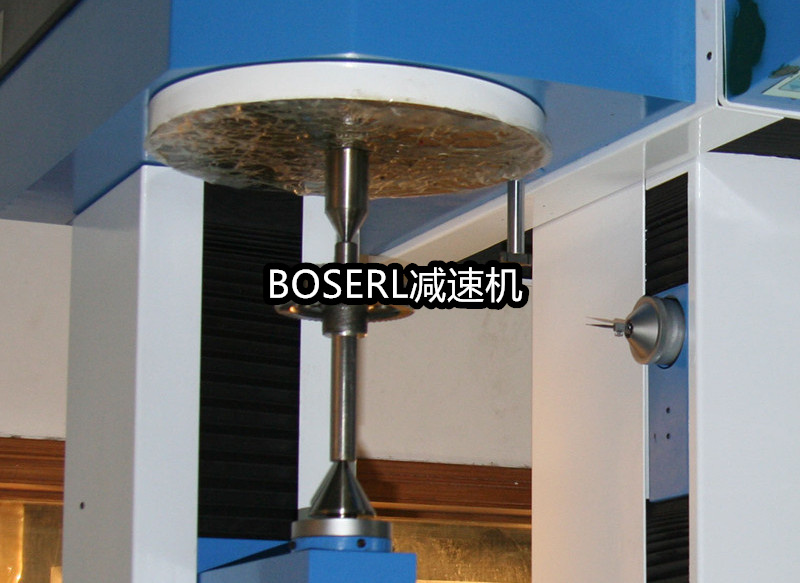

FAF69R39減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-fafxiliejiansuji-cn.html
