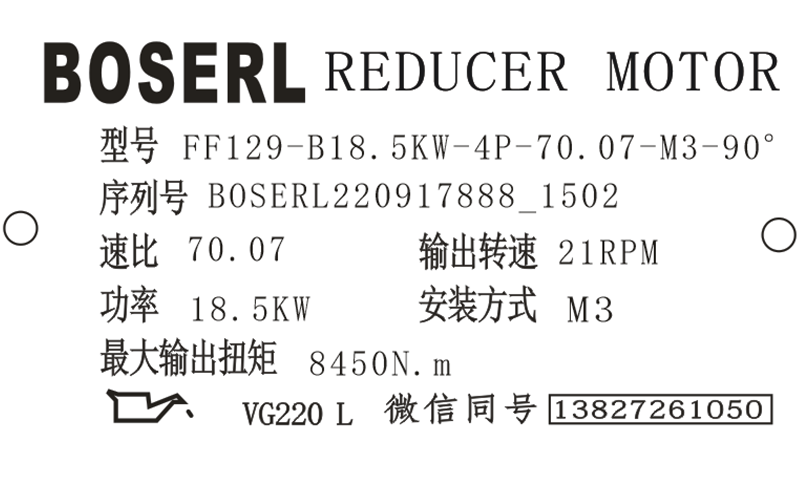

FF129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF129減速器選型樣本。

FF129-B18.5KW-4P-70.07-M3-90°

FF：系列代號

129：減速機規格代號

B：電機

18.5KW：電機功率

4P：電機級數

70.07：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

FF129減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF129減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF129減速器安裝操作的正確方法：

FF129減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF129減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF129減速器，啟動FF129減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF129減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF129減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF129減速器選型樣本”）。

FF129減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF129減速器型號：

XDFF127-Y11KW，XDFF127-Y132M4，XDFF127-Y15KW，XDFF127-Y160M4，XDFF127-Y18.5KW，XDFF127-Y180M4，XDFF127-Y200M4，XDFF127-Y225M4，XDFF127-Y22KW，XDFF127-Y250M4，XDFF127-Y280M4，XDFF127-Y30KW，XDFF127-Y37KW，XDFF127-Y45KW，XDFF127-Y55KW，XDFF127-Y7.5KW，XDFF127-Y75KW，XDFF127-Y90KW，XDFF127-YB132M4，XDFF127-YB160M4，XDFF127-YB180M4，XDFF127-YB200M4，XDFF127-YB225M4，XDFF127-YB250M4，XDFF127-YB280M4，XDFF127-YDP132M4，XDFF127-YDP160M4，XDFF127-YDP180M4，XDFF127-YDP200M4，XDFF127-YDP225M4，XDFF127-YDP250M4，XDFF127-YDP280M4，XDFF127-YE132M4，XDFF127-YE160M4，XDFF127-YE180M4，XDFF127-YE200M4，XDFF127-YE225M4，XDFF127-YE250M4，XDFF127-YE280M4，XDFF127-YEJ132M4，XDFF127-YEJ160M4，XDFF127-YEJ180M4，XDFF127-YEJ200M4，XDFF127-YEJ225M4，XDFF127-YEJ250M4，XDFF127-YEJ280M4，XDFF127-YEJB132M4，XDFF127-YEJB160M4，XDFF127-YEJB180M4，XDFF127-YEJB200M4，XDFF127-YEJB225M4，XDFF127-YEJB250M4，XDFF127-YEJB280M4，XDFF127-YP132M4，XDFF127-YP160M4，XDFF127-YP180M4，XDFF127-YP200M4，XDFF127-YP225M4，XDFF127-YP250M4，XDFF127-YP280M4，XDFF127-YPB132M4，XDFF127-YPB160M4，XDFF127-YPB180M4，XDFF127-YPB200M4，XDFF127-YPB225M4，XDFF127-YPB250M4，XDFF127-YPB280M4，XDFF127-YPE132M4，XDFF127-YPE160M4，XDFF127-YPE180M4，XDFF127-YPE200M4，XDFF127-YPE225M4，XDFF127-YPE250M4，XDFF127-YPE280M4，XDFF127-YS132M4，XDFF127-YS160M4，XDFF127-YS180M4，XDFF127-YS200M4，XDFF127-YS225M4，XDFF127-YS250M4，XDFF127-YS280M4，XDFF127-YVB132M4，XDFF127-YVB160M4，XDFF127-YVB180M4，XDFF127-YVB200M4，XDFF127-YVB225M4，XDFF127-YVB250M4，XDFF127-YVB280M4，XDFF127-YVP132M4，XDFF127-YVP160M4，XDFF127-YVP180M4，XDFF127-YVP200M4，XDFF127-YVP225M4，XDFF127-YVP250M4，XDFF127-YVP280M4，XDFF127-YVPEJ132M4，XDFF127-YVPEJ160M4，XDFF127-YVPEJ180M4，XDFF127-YVPEJ200M4，XDFF127-YVPEJ225M4，XDFF127-YVPEJ250M4，XDFF127-YVPEJ280M4，JCFF127-Y11KW，JCFF127-Y132M4，JCFF127-Y15KW，JCFF127-Y160M4，JCFF127-Y18.5KW，JCFF127-Y180M4，JCFF127-Y200M4，JCFF127-Y225M4，JCFF127-Y22KW，JCFF127-Y250M4，JCFF127-Y280M4，JCFF127-Y30KW，JCFF127-Y37KW，JCFF127-Y45KW，JCFF127-Y55KW，JCFF127-Y7.5KW，JCFF127-Y75KW，JCFF127-Y90KW，JCFF127-YB132M4，JCFF127-YB160M4，JCFF127-YB180M4，JCFF127-YB200M4，JCFF127-YB225M4，JCFF127-YB250M4，JCFF127-YB280M4，JCFF127-YDP132M4，JCFF127-YDP160M4，JCFF127-YDP180M4，JCFF127-YDP200M4，JCFF127-YDP225M4，JCFF127-YDP250M4，JCFF127-YDP280M4，JCFF127-YE132M4，JCFF127-YE160M4，JCFF127-YE180M4，JCFF127-YE200M4，JCFF127-YE225M4，JCFF127-YE250M4，JCFF127-YE280M4，JCFF127-YEJ132M4，JCFF127-YEJ160M4，JCFF127-YEJ180M4，JCFF127-YEJ200M4，JCFF127-YEJ225M4，JCFF127-YEJ250M4，JCFF127-YEJ280M4，JCFF127-YEJB132M4，JCFF127-YEJB160M4，JCFF127-YEJB180M4，JCFF127-YEJB200M4，JCFF127-YEJB225M4，JCFF127-YEJB250M4，JCFF127-YEJB280M4，JCFF127-YP132M4，JCFF127-YP160M4，JCFF127-YP180M4，JCFF127-YP200M4，JCFF127-YP225M4，JCFF127-YP250M4，JCFF127-YP280M4，JCFF127-YPB132M4，JCFF127-YPB160M4，JCFF127-YPB180M4，JCFF127-YPB200M4，JCFF127-YPB225M4，JCFF127-YPB250M4，JCFF127-YPB280M4，JCFF127-YPE132M4，JCFF127-YPE160M4，JCFF127-YPE180M4，JCFF127-YPE200M4，JCFF127-YPE225M4，JCFF127-YPE250M4，JCFF127-YPE280M4，JCFF127-YS132M4，JCFF127-YS160M4，JCFF127-YS180M4，JCFF127-YS200M4，JCFF127-YS225M4，JCFF127-YS250M4，JCFF127-YS280M4，JCFF127-YVB132M4，JCFF127-YVB160M4，JCFF127-YVB180M4，JCFF127-YVB200M4，JCFF127-YVB225M4，JCFF127-YVB250M4，JCFF127-YVB280M4，JCFF127-YVP132M4，JCFF127-YVP160M4，JCFF127-YVP180M4，JCFF127-YVP200M4，JCFF127-YVP225M4，JCFF127-YVP250M4，JCFF127-YVP280M4，JCFF127-YVPEJ132M4，JCFF127-YVPEJ160M4，JCFF127-YVPEJ180M4，JCFF127-YVPEJ200M4，JCFF127-YVPEJ225M4，JCFF127-YVPEJ250M4，JCFF127-YVPEJ280M4，FWF127-Y11KW，FWF127-Y132M4，FWF127-Y15KW，FWF127-Y160M4，FWF127-Y18.5KW，FWF127-Y180M4，FWF127-Y200M4，FWF127-Y225M4，FWF127-Y22KW，FWF127-Y250M4，FWF127-Y280M4，FWF127-Y30KW，FWF127-Y37KW，FWF127-Y45KW，FWF127-Y55KW，FWF127-Y7.5KW，FWF127-Y75KW，FWF127-Y90KW，FWF127-YB132M4，FWF127-YB160M4，FWF127-YB180M4，FWF127-YB200M4，FWF127-YB225M4，FWF127-YB250M4，FWF127-YB280M4，FWF127-YDP132M4，FWF127-YDP160M4，FWF127-YDP180M4，FWF127-YDP200M4，FWF127-YDP225M4，FWF127-YDP250M4，FWF127-YDP280M4，FWF127-YE132M4，FWF127-YE160M4，FWF127-YE180M4，FWF127-YE200M4，FWF127-YE225M4，FWF127-YE250M4，FWF127-YE280M4，FWF127-YEJ132M4，FWF127-YEJ160M4，FWF127-YEJ180M4，FWF127-YEJ200M4，FWF127-YEJ225M4，FWF127-YEJ250M4，FWF127-YEJ280M4，FWF127-YEJB132M4，FWF127-YEJB160M4，FWF127-YEJB180M4，FWF127-YEJB200M4，FWF127-YEJB225M4，FWF127-YEJB250M4，FWF127-YEJB280M4，FWF127-YP132M4，FWF127-YP160M4，FWF127-YP180M4，FWF127-YP200M4，FWF127-YP225M4，FWF127-YP250M4，FWF127-YP280M4，FWF127-YPB132M4，FWF127-YPB160M4，FWF127-YPB180M4，FWF127-YPB200M4，FWF127-YPB225M4，FWF127-YPB250M4，FWF127-YPB280M4，FWF127-YPE132M4，FWF127-YPE160M4，FWF127-YPE180M4，FWF127-YPE200M4，FWF127-YPE225M4，FWF127-YPE250M4，FWF127-YPE280M4，FWF127-YS132M4，FWF127-YS160M4，FWF127-YS180M4，FWF127-YS200M4，FWF127-YS225M4，FWF127-YS250M4，FWF127-YS280M4，FWF127-YVB132M4，FWF127-YVB160M4，FWF127-YVB180M4，FWF127-YVB200M4，FWF127-YVB225M4，FWF127-YVB250M4，FWF127-YVB280M4，FWF127-YVP132M4，FWF127-YVP160M4，FWF127-YVP180M4，FWF127-YVP200M4，FWF127-YVP225M4，FWF127-YVP250M4，FWF127-YVP280M4，FWF127-YVPEJ132M4，FWF127-YVPEJ160M4，FWF127-YVPEJ180M4，FWF127-YVPEJ200M4，FWF127-YVPEJ225M4，FWF127-YVPEJ250M4，FWF127-YVPEJ280M4，YQFF127-Y11KW，YQFF127-Y132M4，YQFF127-Y15KW，YQFF127-Y160M4，YQFF127-Y18.5KW，YQFF127-Y180M4，YQFF127-Y200M4，YQFF127-Y225M4，YQFF127-Y22KW，YQFF127-Y250M4，YQFF127-Y280M4，YQFF127-Y30KW，YQFF127-Y37KW，YQFF127-Y45KW，YQFF127-Y55KW，YQFF127-Y7.5KW，YQFF127-Y75KW，YQFF127-Y90KW，YQFF127-YB132M4，YQFF127-YB160M4，YQFF127-YB180M4，YQFF127-YB200M4，YQFF127-YB225M4，YQFF127-YB250M4，YQFF127-YB280M4，YQFF127-YDP132M4，YQFF127-YDP160M4，YQFF127-YDP180M4，YQFF127-YDP200M4，YQFF127-YDP225M4，YQFF127-YDP250M4，YQFF127-YDP280M4，YQFF127-YE132M4，YQFF127-YE160M4，YQFF127-YE180M4，YQFF127-YE200M4，YQFF127-YE225M4，YQFF127-YE250M4，YQFF127-YE280M4，YQFF127-YEJ132M4，YQFF127-YEJ160M4，YQFF127-YEJ180M4，YQFF127-YEJ200M4，YQFF127-YEJ225M4，YQFF127-YEJ250M4，YQFF127-YEJ280M4，YQFF127-YEJB132M4，YQFF127-YEJB160M4，YQFF127-YEJB180M4，YQFF127-YEJB200M4，YQFF127-YEJB225M4，YQFF127-YEJB250M4，YQFF127-YEJB280M4，YQFF127-YP132M4，YQFF127-YP160M4，YQFF127-YP180M4，YQFF127-YP200M4，YQFF127-YP225M4，YQFF127-YP250M4，YQFF127-YP280M4，YQFF127-YPB132M4，YQFF127-YPB160M4，YQFF127-YPB180M4，YQFF127-YPB200M4，YQFF127-YPB225M4，YQFF127-YPB250M4，YQFF127-YPB280M4，YQFF127-YPE132M4，YQFF127-YPE160M4，YQFF127-YPE180M4，YQFF127-YPE200M4，YQFF127-YPE225M4，YQFF127-YPE250M4，YQFF127-YPE280M4，YQFF127-YS132M4，YQFF127-YS160M4，YQFF127-YS180M4，YQFF127-YS200M4，YQFF127-YS225M4，YQFF127-YS250M4，YQFF127-YS280M4，YQFF127-YVB132M4，YQFF127-YVB160M4，YQFF127-YVB180M4，YQFF127-YVB200M4，YQFF127-YVB225M4，YQFF127-YVB250M4，YQFF127-YVB280M4，YQFF127-YVP132M4，YQFF127-YVP160M4，YQFF127-YVP180M4，YQFF127-YVP200M4，YQFF127-YVP225M4，YQFF127-YVP250M4，YQFF127-YVP280M4，YQFF127-YVPEJ132M4，YQFF127-YVPEJ160M4，YQFF127-YVPEJ180M4，YQFF127-YVPEJ200M4，YQFF127-YVPEJ225M4，YQFF127-YVPEJ250M4，YQFF127-YVPEJ280M4，FF129-Y11KW，FF129-Y132M4，FF129-Y15KW，FF129-Y160M4，FF129-Y18.5KW，FF129-Y180M4，FF129-Y200M4，FF129-Y225M4，FF129-Y22KW，FF129-Y250M4，FF129-Y280M4，FF129-Y30KW，FF129-Y37KW，FF129-Y45KW，FF129-Y55KW，FF129-Y7.5KW，FF129-Y75KW，FF129-Y90KW，FF129-YB132M4，FF129-YB160M4，FF129-YB180M4，FF129-YB200M4，FF129-YB225M4，FF129-YB250M4，FF129-YB280M4，FF129-YDP132M4，FF129-YDP160M4，FF129-YDP180M4，FF129-YDP200M4，FF129-YDP225M4，FF129-YDP250M4，FF129-YDP280M4，FF129-YE132M4，FF129-YE160M4，FF129-YE180M4，FF129-YE200M4，FF129-YE225M4，FF129-YE250M4，FF129-YE280M4，FF129-YEJ132M4，FF129-YEJ160M4，FF129-YEJ180M4，FF129-YEJ200M4，FF129-YEJ225M4，FF129-YEJ250M4，FF129-YEJ280M4，FF129-YEJB132M4，FF129-YEJB160M4，FF129-YEJB180M4，FF129-YEJB200M4，FF129-YEJB225M4，FF129-YEJB250M4，FF129-YEJB280M4，FF129-YP132M4，FF129-YP160M4，FF129-YP180M4，FF129-YP200M4，FF129-YP225M4，FF129-YP250M4，FF129-YP280M4，FF129-YPB132M4，FF129-YPB160M4，FF129-YPB180M4，FF129-YPB200M4，FF129-YPB225M4，FF129-YPB250M4，FF129-YPB280M4，FF129-YPE132M4，FF129-YPE160M4，FF129-YPE180M4，FF129-YPE200M4，FF129-YPE225M4，FF129-YPE250M4，FF129-YPE280M4，FF129-YS132M4，FF129-YS160M4，FF129-YS180M4，FF129-YS200M4，FF129-YS225M4，FF129-YS250M4，FF129-YS280M4，FF129-YVB132M4，FF129-YVB160M4，FF129-YVB180M4，FF129-YVB200M4，FF129-YVB225M4，FF129-YVB250M4，FF129-YVB280M4，FF129-YVP132M4，FF129-YVP160M4，FF129-YVP180M4，FF129-YVP200M4，FF129-YVP225M4，FF129-YVP250M4，FF129-YVP280M4，FF129-YVPEJ132M4，FF129-YVPEJ160M4，FF129-YVPEJ180M4，FF129-YVPEJ200M4，FF129-YVPEJ225M4，FF129-YVPEJ250M4，FF129-YVPEJ280M4，FF127SF80，FF127SF90，FF127SF100，FF127SF112，FF127SF115，FF127SF140，FF127SF160，FF127SF190。

FF129減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F129減速機
