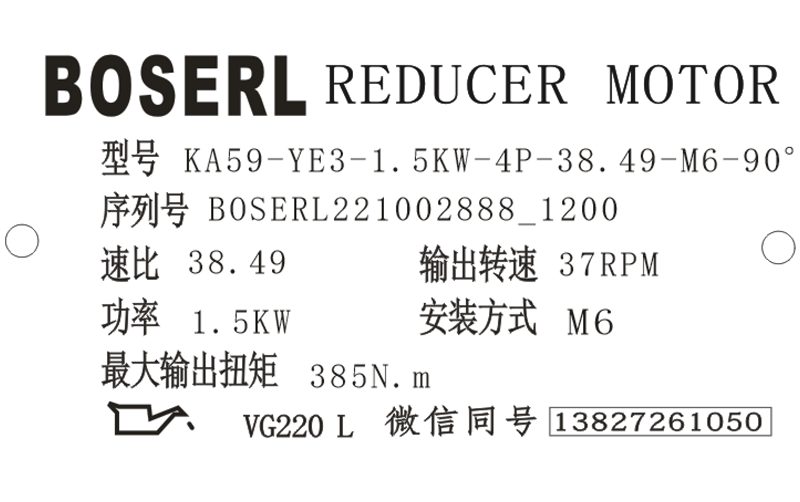

KA59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA59減速機選型樣本。

KA59-YE3-1.5KW-4P-38.49-M6-90°

KA：系列代號

59：減速機規格代號

YE3：電機

1.5KW：電機功率

4P：電機級數

38.49：減速機傳動比

M6：減速機安裝位置

90°：接線盒位置

KA59減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA59減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA59減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA59減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA59減速機型號：

WKA57-Y0.12SKA，WKA57-Y0.18SKA，WKA57-Y0.25SKA，WKA57-Y0.37SKA，WKA57-Y0.55SKA，WKA57-Y0.75SKA，WKA57-Y1.1SKA，WKA57-Y1.5SKA，WKA57-Y100M4，WKA57-Y112M4，WKA57-Y2.2SKA，WKA57-Y3SKA，WKA57-Y4SKA，WKA57-Y63M4，WKA57-Y71M4，WKA57-Y80M4，WKA57-Y90M4，WKA57-YB100M4，WKA57-YB112M4，WKA57-YB63M4，WKA57-YB71M4，WKA57-YB80M4，WKA57-YB90M4，WKA57-YDP100M4，WKA57-YDP112M4，WKA57-YDP63M4，WKA57-YDP71M4，WKA57-YDP80M4，WKA57-YDP90M4，WKA57-YE100M4，WKA57-YE112M4，WKA57-YE63M4，WKA57-YE71M4，WKA57-YE80M4，WKA57-YE90M4，WKA57-YEJ100M4，WKA57-YEJ112M4，WKA57-YEJ63M4，WKA57-YEJ71M4，WKA57-YEJ80M4，WKA57-YEJ90M4，WKA57-YEJB100M4，WKA57-YEJB112M4，WKA57-YEJB63M4，WKA57-YEJB71M4，WKA57-YEJB80M4，WKA57-YEJB90M4，WKA57-YP100M4，WKA57-YP112M4，WKA57-YP63M4，WKA57-YP71M4，WKA57-YP80M4，WKA57-YP90M4，WKA57-YPB100M4，WKA57-YPB112M4，WKA57-YPB63M4，WKA57-YPB71M4，WKA57-YPB80M4，WKA57-YPB90M4，WKA57-YPE100M4，WKA57-YPE112M4，WKA57-YPE63M4，WKA57-YPE71M4，WKA57-YPE80M4，WKA57-YPE90M4，WKA57-YS100M4，WKA57-YS112M4，WKA57-YS63M4，WKA57-YS71M4，WKA57-YS80M4，WKA57-YS90M4，WKA57-YVB100M4，WKA57-YVB112M4，WKA57-YVB63M4，WKA57-YVB71M4，WKA57-YVB80M4，WKA57-YVB90M4，WKA57-YVP100M4，WKA57-YVP112M4，WKA57-YVP63M4，WKA57-YVP71M4，WKA57-YVP80M4，WKA57-YVP90M4，WKA57-YVPEJ100M4，WKA57-YVPEJ112M4，WKA57-YVPEJ63M4，WKA57-YVPEJ71M4，WKA57-YVPEJ80M4，WKA57-YVPEJ90M4，SKA57-Y0.12SKA，SKA57-Y0.18SKA，SKA57-Y0.25SKA，SKA57-Y0.37SKA，SKA57-Y0.55SKA，SKA57-Y0.75SKA，SKA57-Y1.1SKA，SKA57-Y1.5SKA，SKA57-Y100M4，SKA57-Y112M4，SKA57-Y2.2SKA，SKA57-Y3SKA，SKA57-Y4SKA，SKA57-Y63M4，SKA57-Y71M4，SKA57-Y80M4，SKA57-Y90M4，SKA57-YB100M4，SKA57-YB112M4，SKA57-YB63M4，SKA57-YB71M4，SKA57-YB80M4，SKA57-YB90M4，SKA57-YDP100M4，SKA57-YDP112M4，SKA57-YDP63M4，SKA57-YDP71M4，SKA57-YDP80M4，SKA57-YDP90M4，SKA57-YE100M4，SKA57-YE112M4，SKA57-YE63M4，SKA57-YE71M4，SKA57-YE80M4，SKA57-YE90M4，SKA57-YEJ100M4，SKA57-YEJ112M4，SKA57-YEJ63M4，SKA57-YEJ71M4，SKA57-YEJ80M4，SKA57-YEJ90M4，SKA57-YEJB100M4，SKA57-YEJB112M4，SKA57-YEJB63M4，SKA57-YEJB71M4，SKA57-YEJB80M4，SKA57-YEJB90M4，SKA57-YP100M4，SKA57-YP112M4，SKA57-YP63M4，SKA57-YP71M4，SKA57-YP80M4，SKA57-YP90M4，SKA57-YPB100M4，SKA57-YPB112M4，SKA57-YPB63M4，SKA57-YPB71M4，SKA57-YPB80M4，SKA57-YPB90M4，SKA57-YPE100M4，SKA57-YPE112M4，SKA57-YPE63M4，SKA57-YPE71M4，SKA57-YPE80M4，SKA57-YPE90M4，SKA57-YS100M4，SKA57-YS112M4，SKA57-YS63M4，SKA57-YS71M4，SKA57-YS80M4，SKA57-YS90M4，SKA57-YVB100M4，SKA57-YVB112M4，SKA57-YVB63M4，SKA57-YVB71M4，SKA57-YVB80M4，SKA57-YVB90M4，SKA57-YVP100M4，SKA57-YVP112M4，SKA57-YVP63M4，SKA57-YVP71M4，SKA57-YVP80M4，SKA57-YVP90M4，SKA57-YVPEJ100M4，SKA57-YVPEJ112M4，SKA57-YVPEJ63M4，SKA57-YVPEJ71M4，SKA57-YVPEJ80M4，SKA57-YVPEJ90M4，AKA57-Y0.12SKA，AKA57-Y0.18SKA，AKA57-Y0.25SKA，AKA57-Y0.37SKA，AKA57-Y0.55SKA，AKA57-Y0.75SKA，AKA57-Y1.1SKA，AKA57-Y1.5SKA，AKA57-Y100M4，AKA57-Y112M4，AKA57-Y2.2SKA，AKA57-Y3SKA，AKA57-Y4SKA，AKA57-Y63M4，AKA57-Y71M4，AKA57-Y80M4，AKA57-Y90M4，AKA57-YB100M4，AKA57-YB112M4，AKA57-YB63M4，AKA57-YB71M4，AKA57-YB80M4，AKA57-YB90M4，AKA57-YDP100M4，AKA57-YDP112M4，AKA57-YDP63M4，AKA57-YDP71M4，AKA57-YDP80M4，AKA57-YDP90M4，AKA57-YE100M4，AKA57-YE112M4，AKA57-YE63M4，AKA57-YE71M4，AKA57-YE80M4，AKA57-YE90M4，AKA57-YEJ100M4，AKA57-YEJ112M4，AKA57-YEJ63M4，AKA57-YEJ71M4，AKA57-YEJ80M4，AKA57-YEJ90M4，AKA57-YEJB100M4，AKA57-YEJB112M4，AKA57-YEJB63M4，AKA57-YEJB71M4，AKA57-YEJB80M4，AKA57-YEJB90M4，AKA57-YP100M4，AKA57-YP112M4，AKA57-YP63M4，AKA57-YP71M4，AKA57-YP80M4，AKA57-YP90M4，AKA57-YPB100M4，AKA57-YPB112M4，AKA57-YPB63M4，AKA57-YPB71M4，AKA57-YPB80M4，AKA57-YPB90M4，AKA57-YPE100M4，AKA57-YPE112M4，AKA57-YPE63M4，AKA57-YPE71M4，AKA57-YPE80M4，AKA57-YPE90M4，AKA57-YS100M4，AKA57-YS112M4，AKA57-YS63M4，AKA57-YS71M4，AKA57-YS80M4，AKA57-YS90M4，AKA57-YVB100M4，AKA57-YVB112M4，AKA57-YVB63M4，AKA57-YVB71M4，AKA57-YVB80M4，AKA57-YVB90M4，AKA57-YVP100M4，AKA57-YVP112M4，AKA57-YVP63M4，AKA57-YVP71M4，AKA57-YVP80M4，AKA57-YVP90M4，AKA57-YVPEJ100M4，AKA57-YVPEJ112M4，AKA57-YVPEJ63M4，AKA57-YVPEJ71M4，AKA57-YVPEJ80M4，AKA57-YVPEJ90M4，NKA57-Y0.12SKA，NKA57-Y0.18SKA，NKA57-Y0.25SKA，NKA57-Y0.37SKA，NKA57-Y0.55SKA，NKA57-Y0.75SKA，NKA57-Y1.1SKA，NKA57-Y1.5SKA，NKA57-Y100M4，NKA57-Y112M4，NKA57-Y2.2SKA，NKA57-Y3SKA，NKA57-Y4SKA，NKA57-Y63M4，NKA57-Y71M4，NKA57-Y80M4，NKA57-Y90M4，NKA57-YB100M4，NKA57-YB112M4，NKA57-YB63M4，NKA57-YB71M4，NKA57-YB80M4，NKA57-YB90M4，NKA57-YDP100M4，NKA57-YDP112M4，NKA57-YDP63M4，NKA57-YDP71M4，NKA57-YDP80M4，NKA57-YDP90M4，NKA57-YE100M4，NKA57-YE112M4，NKA57-YE63M4，NKA57-YE71M4，NKA57-YE80M4，NKA57-YE90M4，NKA57-YEJ100M4，NKA57-YEJ112M4，NKA57-YEJ63M4，NKA57-YEJ71M4，NKA57-YEJ80M4，NKA57-YEJ90M4，NKA57-YEJB100M4，NKA57-YEJB112M4，NKA57-YEJB63M4，NKA57-YEJB71M4，NKA57-YEJB80M4，NKA57-YEJB90M4，NKA57-YP100M4，NKA57-YP112M4，NKA57-YP63M4，NKA57-YP71M4，NKA57-YP80M4，NKA57-YP90M4，NKA57-YPB100M4，NKA57-YPB112M4，NKA57-YPB63M4，NKA57-YPB71M4，NKA57-YPB80M4，NKA57-YPB90M4，NKA57-YPE100M4，NKA57-YPE112M4，NKA57-YPE63M4，NKA57-YPE71M4，NKA57-YPE80M4，NKA57-YPE90M4，NKA57-YS100M4，NKA57-YS112M4，NKA57-YS63M4，NKA57-YS71M4，NKA57-YS80M4，NKA57-YS90M4，NKA57-YVB100M4，NKA57-YVB112M4，NKA57-YVB63M4，NKA57-YVB71M4，NKA57-YVB80M4，NKA57-YVB90M4，NKA57-YVP100M4，NKA57-YVP112M4，NKA57-YVP63M4，NKA57-YVP71M4，NKA57-YVP80M4，NKA57-YVP90M4，NKA57-YVPEJ100M4，NKA57-YVPEJ112M4，NKA57-YVPEJ63M4，NKA57-YVPEJ71M4，NKA57-YVPEJ80M4，NKA57-YVPEJ90M4，GKA59-Y0.12SKA，GKA59-Y0.18SKA，GKA59-Y0.25SKA，GKA59-Y0.37SKA，GKA59-Y0.55SKA，GKA59-Y0.75SKA，GKA59-Y1.1SKA，GKA59-Y1.5SKA，GKA59-Y100M4，GKA59-Y112M4，GKA59-Y2.2SKA，GKA59-Y3SKA，GKA59-Y4SKA，GKA59-Y63M4，GKA59-Y71M4，GKA59-Y80M4，GKA59-Y90M4，GKA59-YB100M4，GKA59-YB112M4，GKA59-YB63M4，GKA59-YB71M4，GKA59-YB80M4，GKA59-YB90M4，GKA59-YDP100M4，GKA59-YDP112M4，GKA59-YDP63M4，GKA59-YDP71M4，GKA59-YDP80M4，GKA59-YDP90M4，GKA59-YE100M4，GKA59-YE112M4，GKA59-YE63M4，GKA59-YE71M4，GKA59-YE80M4，GKA59-YE90M4，GKA59-YEJ100M4，GKA59-YEJ112M4，GKA59-YEJ63M4，GKA59-YEJ71M4，GKA59-YEJ80M4，GKA59-YEJ90M4，GKA59-YEJB100M4，GKA59-YEJB112M4，GKA59-YEJB63M4，GKA59-YEJB71M4，GKA59-YEJB80M4，GKA59-YEJB90M4，GKA59-YP100M4，GKA59-YP112M4，GKA59-YP63M4，GKA59-YP71M4，GKA59-YP80M4，GKA59-YP90M4，GKA59-YPB100M4，GKA59-YPB112M4，GKA59-YPB63M4，GKA59-YPB71M4，GKA59-YPB80M4，GKA59-YPB90M4，GKA59-YPE100M4，GKA59-YPE112M4，GKA59-YPE63M4，GKA59-YPE71M4，GKA59-YPE80M4，GKA59-YPE90M4，GKA59-YS100M4，GKA59-YS112M4，GKA59-YS63M4，GKA59-YS71M4，GKA59-YS80M4，GKA59-YS90M4，GKA59-YVB100M4，GKA59-YVB112M4，GKA59-YVB63M4，GKA59-YVB71M4，GKA59-YVB80M4，GKA59-YVB90M4，GKA59-YVP100M4，GKA59-YVP112M4，GKA59-YVP63M4，GKA59-YVP71M4，GKA59-YVP80M4，GKA59-YVP90M4，GKA59-YVPEJ100M4，GKA59-YVPEJ112M4，GKA59-YVPEJ63M4，GKA59-YVPEJ71M4，GKA59-YVPEJ80M4，GKA59-YVPEJ90M4。

KA59減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K59減速機
