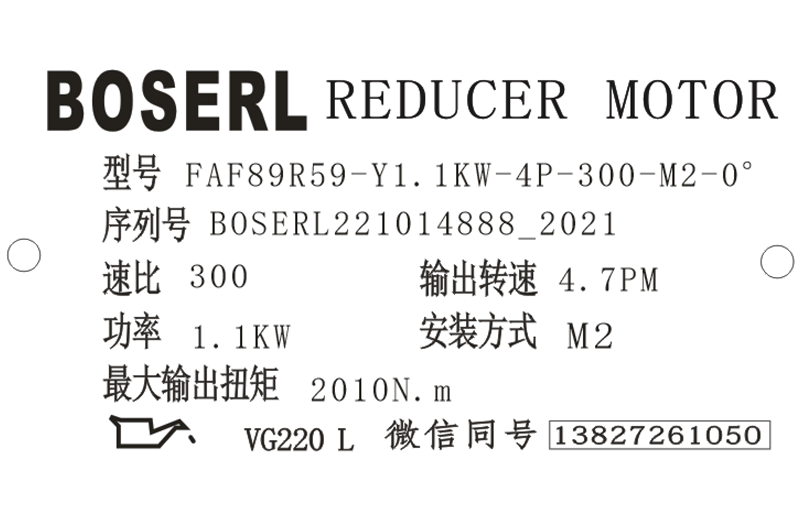

FAF89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF89R59減速機選型樣本。

FAF89R59-Y1.1KW-4P-300-M2-0°

FAF/R：系列代號

89/59：減速機規格代號

Y：電機

1.1KW：電機功率

4P：電機級數

300：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

FAF89R59減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變?nèi)嚯姍C(jī)的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

一、FAF89R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

二、FAF89R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

三、FAF89R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF89R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

五、FAF89R59減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

六、FAF89R59減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF89R59減速電機型號：

YQFAF87R57-Y0.12KW，YQFAF87R57-Y0.18KW，YQFAF87R57-Y0.25KW，YQFAF87R57-Y0.37KW，YQFAF87R57-Y0.55KW，YQFAF87R57-Y0.75KW，YQFAF87R57-Y1.1KW，YQFAF87R57-Y1.5KW，YQFAF87R57-Y63M4，YQFAF87R57-Y71M4，YQFAF87R57-Y80M4，YQFAF87R57-Y90M4，YQFAF87RF57-Y63M4，YQFAF87RF57-Y71M4，YQFAF87RF57-Y80M4，YQFAF87RF57-Y90M4，YQFAF87RF57-YB63M4，YQFAF87RF57-YB71M4，YQFAF87RF57-YB80M4，YQFAF87RF57-YB90S4，YQFAF87RF57-YDP63M4，YQFAF87RF57-YDP71M4，YQFAF87RF57-YDP80M4，YQFAF87RF57-YDP90S4，YQFAF87RF57-YE63M4，YQFAF87RF57-YE71M4，YQFAF87RF57-YE80M4，YQFAF87RF57-YE90S4，YQFAF87RF57-YEJ63M4，YQFAF87RF57-YEJ71M4，YQFAF87RF57-YEJ80M4，YQFAF87RF57-YEJ90S4，YQFAF87RF57-YEJB63M4，YQFAF87RF57-YEJB71M4，YQFAF87RF57-YEJB80M4，YQFAF87RF57-YEJB90S4，YQFAF87RF57-YP63M4，YQFAF87RF57-YP71M4，YQFAF87RF57-YP80M4，YQFAF87RF57-YP90S4，YQFAF87RF57-YPB63M4，YQFAF87RF57-YPB71M4，YQFAF87RF57-YPB80M4，YQFAF87RF57-YPB90S4，YQFAF87RF57-YPE63M4，YQFAF87RF57-YPE71M4，YQFAF87RF57-YPE80M4，YQFAF87RF57-YPE90S4，YQFAF87RF57-YS63M4，YQFAF87RF57-YS71M4，YQFAF87RF57-YS80M4，YQFAF87RF57-YS90S4，YQFAF87RF57-YVB63M4，YQFAF87RF57-YVB71M4，YQFAF87RF57-YVB80M4，YQFAF87RF57-YVB90S4，YQFAF87RF57-YVP63M4，YQFAF87RF57-YVP71M4，YQFAF87RF57-YVP80M4，YQFAF87RF57-YVP90S4，YQFAF87RF57-YVPEJ63M4，YQFAF87RF57-YVPEJ71M4，YQFAF87RF57-YVPEJ80M4，YQFAF87RF57-YVPEJ90S4，JCFAF87R57-Y0.12KW，JCFAF87R57-Y0.18KW，JCFAF87R57-Y0.25KW，JCFAF87R57-Y0.37KW，JCFAF87R57-Y0.55KW，JCFAF87R57-Y0.75KW，JCFAF87R57-Y1.1KW，JCFAF87R57-Y1.5KW，JCFAF87R57-Y63M4，JCFAF87R57-Y71M4，JCFAF87R57-Y80M4，JCFAF87R57-Y90M4，JCFAF87RF57-Y63M4，JCFAF87RF57-Y71M4，JCFAF87RF57-Y80M4，JCFAF87RF57-Y90M4，JCFAF87RF57-YB63M4，JCFAF87RF57-YB71M4，JCFAF87RF57-YB80M4，JCFAF87RF57-YB90S4，JCFAF87RF57-YDP63M4，JCFAF87RF57-YDP71M4，JCFAF87RF57-YDP80M4，JCFAF87RF57-YDP90S4，JCFAF87RF57-YE63M4，JCFAF87RF57-YE71M4，JCFAF87RF57-YE80M4，JCFAF87RF57-YE90S4，JCFAF87RF57-YEJ63M4，JCFAF87RF57-YEJ71M4，JCFAF87RF57-YEJ80M4，JCFAF87RF57-YEJ90S4，JCFAF87RF57-YEJB63M4，JCFAF87RF57-YEJB71M4，JCFAF87RF57-YEJB80M4，JCFAF87RF57-YEJB90S4，JCFAF87RF57-YP63M4，JCFAF87RF57-YP71M4，JCFAF87RF57-YP80M4，JCFAF87RF57-YP90S4，JCFAF87RF57-YPB63M4，JCFAF87RF57-YPB71M4，JCFAF87RF57-YPB80M4，JCFAF87RF57-YPB90S4，JCFAF87RF57-YPE63M4，JCFAF87RF57-YPE71M4，JCFAF87RF57-YPE80M4，JCFAF87RF57-YPE90S4，JCFAF87RF57-YS63M4，JCFAF87RF57-YS71M4，JCFAF87RF57-YS80M4，JCFAF87RF57-YS90S4，JCFAF87RF57-YVB63M4，JCFAF87RF57-YVB71M4，JCFAF87RF57-YVB80M4，JCFAF87RF57-YVB90S4，JCFAF87RF57-YVP63M4，JCFAF87RF57-YVP71M4，JCFAF87RF57-YVP80M4，JCFAF87RF57-YVP90S4，JCFAF87RF57-YVPEJ63M4，JCFAF87RF57-YVPEJ71M4，JCFAF87RF57-YVPEJ80M4，JCFAF87RF57-YVPEJ90S4，AFAF87R57-Y0.12KW，AFAF87R57-Y0.18KW，AFAF87R57-Y0.25KW，AFAF87R57-Y0.37KW，AFAF87R57-Y0.55KW，AFAF87R57-Y0.75KW，AFAF87R57-Y1.1KW，AFAF87R57-Y1.5KW，AFAF87R57-Y63M4，AFAF87R57-Y71M4，AFAF87R57-Y80M4，AFAF87R57-Y90M4，AFAF87RF57-Y63M4，AFAF87RF57-Y71M4，AFAF87RF57-Y80M4，AFAF87RF57-Y90M4，AFAF87RF57-YB63M4，AFAF87RF57-YB71M4，AFAF87RF57-YB80M4，AFAF87RF57-YB90S4，AFAF87RF57-YDP63M4，AFAF87RF57-YDP71M4，AFAF87RF57-YDP80M4，AFAF87RF57-YDP90S4，AFAF87RF57-YE63M4，AFAF87RF57-YE71M4，AFAF87RF57-YE80M4，AFAF87RF57-YE90S4，AFAF87RF57-YEJ63M4，AFAF87RF57-YEJ71M4，AFAF87RF57-YEJ80M4，AFAF87RF57-YEJ90S4，AFAF87RF57-YEJB63M4，AFAF87RF57-YEJB71M4，AFAF87RF57-YEJB80M4，AFAF87RF57-YEJB90S4，AFAF87RF57-YP63M4，AFAF87RF57-YP71M4，AFAF87RF57-YP80M4，AFAF87RF57-YP90S4，AFAF87RF57-YPB63M4，AFAF87RF57-YPB71M4，AFAF87RF57-YPB80M4，AFAF87RF57-YPB90S4，AFAF87RF57-YPE63M4，AFAF87RF57-YPE71M4，AFAF87RF57-YPE80M4，AFAF87RF57-YPE90S4，AFAF87RF57-YS63M4，AFAF87RF57-YS71M4，AFAF87RF57-YS80M4，AFAF87RF57-YS90S4，AFAF87RF57-YVB63M4，AFAF87RF57-YVB71M4，AFAF87RF57-YVB80M4，AFAF87RF57-YVB90S4，AFAF87RF57-YVP63M4，AFAF87RF57-YVP71M4，AFAF87RF57-YVP80M4，AFAF87RF57-YVP90S4，AFAF87RF57-YVPEJ63M4，AFAF87RF57-YVPEJ71M4，AFAF87RF57-YVPEJ80M4，AFAF87RF57-YVPEJ90S4，WFAF87R57-Y0.12KW，WFAF87R57-Y0.18KW，WFAF87R57-Y0.25KW，WFAF87R57-Y0.37KW，WFAF87R57-Y0.55KW，WFAF87R57-Y0.75KW，WFAF87R57-Y1.1KW，WFAF87R57-Y1.5KW，WFAF87R57-Y63M4，WFAF87R57-Y71M4，WFAF87R57-Y80M4，WFAF87R57-Y90M4，WFAF87RF57-Y63M4，WFAF87RF57-Y71M4，WFAF87RF57-Y80M4，WFAF87RF57-Y90M4，WFAF87RF57-YB63M4，WFAF87RF57-YB71M4，WFAF87RF57-YB80M4，WFAF87RF57-YB90S4，WFAF87RF57-YDP63M4，WFAF87RF57-YDP71M4，WFAF87RF57-YDP80M4，WFAF87RF57-YDP90S4，WFAF87RF57-YE63M4，WFAF87RF57-YE71M4，WFAF87RF57-YE80M4，WFAF87RF57-YE90S4，WFAF87RF57-YEJ63M4，WFAF87RF57-YEJ71M4，WFAF87RF57-YEJ80M4，WFAF87RF57-YEJ90S4，WFAF87RF57-YEJB63M4，WFAF87RF57-YEJB71M4，WFAF87RF57-YEJB80M4，WFAF87RF57-YEJB90S4，WFAF87RF57-YP63M4，WFAF87RF57-YP71M4，WFAF87RF57-YP80M4，WFAF87RF57-YP90S4，WFAF87RF57-YPB63M4，WFAF87RF57-YPB71M4，WFAF87RF57-YPB80M4，WFAF87RF57-YPB90S4，WFAF87RF57-YPE63M4，WFAF87RF57-YPE71M4，WFAF87RF57-YPE80M4，WFAF87RF57-YPE90S4，WFAF87RF57-YS63M4，WFAF87RF57-YS71M4，WFAF87RF57-YS80M4，WFAF87RF57-YS90S4，WFAF87RF57-YVB63M4，WFAF87RF57-YVB71M4，WFAF87RF57-YVB80M4，WFAF87RF57-YVB90S4，WFAF87RF57-YVP63M4，WFAF87RF57-YVP71M4，WFAF87RF57-YVP80M4，WFAF87RF57-YVP90S4，WFAF87RF57-YVPEJ63M4，WFAF87RF57-YVPEJ71M4，WFAF87RF57-YVPEJ80M4，WFAF87RF57-YVPEJ90S4，NFAF87R57-Y0.12KW，NFAF87R57-Y0.18KW，NFAF87R57-Y0.25KW，NFAF87R57-Y0.37KW，NFAF87R57-Y0.55KW，NFAF87R57-Y0.75KW，NFAF87R57-Y1.1KW，NFAF87R57-Y1.5KW，NFAF87R57-Y63M4，NFAF87R57-Y71M4，NFAF87R57-Y80M4，NFAF87R57-Y90M4，NFAF87RF57-Y63M4，NFAF87RF57-Y71M4，NFAF87RF57-Y80M4，NFAF87RF57-Y90M4，NFAF87RF57-YB63M4，NFAF87RF57-YB71M4，NFAF87RF57-YB80M4，NFAF87RF57-YB90S4，NFAF87RF57-YDP63M4，NFAF87RF57-YDP71M4，NFAF87RF57-YDP80M4，NFAF87RF57-YDP90S4，NFAF87RF57-YE63M4，NFAF87RF57-YE71M4，NFAF87RF57-YE80M4，NFAF87RF57-YE90S4，NFAF87RF57-YEJ63M4，NFAF87RF57-YEJ71M4，NFAF87RF57-YEJ80M4，NFAF87RF57-YEJ90S4，NFAF87RF57-YEJB63M4，NFAF87RF57-YEJB71M4，NFAF87RF57-YEJB80M4，NFAF87RF57-YEJB90S4，NFAF87RF57-YP63M4，NFAF87RF57-YP71M4，NFAF87RF57-YP80M4，NFAF87RF57-YP90S4，NFAF87RF57-YPB63M4，NFAF87RF57-YPB71M4，NFAF87RF57-YPB80M4，NFAF87RF57-YPB90S4，NFAF87RF57-YPE63M4，NFAF87RF57-YPE71M4，NFAF87RF57-YPE80M4，NFAF87RF57-YPE90S4，NFAF87RF57-YS63M4，NFAF87RF57-YS71M4，NFAF87RF57-YS80M4，NFAF87RF57-YS90S4，NFAF87RF57-YVB63M4，NFAF87RF57-YVB71M4，NFAF87RF57-YVB80M4，NFAF87RF57-YVB90S4，NFAF87RF57-YVP63M4，NFAF87RF57-YVP71M4，NFAF87RF57-YVP80M4，NFAF87RF57-YVP90S4，NFAF87RF57-YVPEJ63M4，NFAF87RF57-YVPEJ71M4，NFAF87RF57-YVPEJ80M4，NFAF87RF57-YVPEJ90S4，SFAF87R57-Y0.12KW，SFAF87R57-Y0.18KW，SFAF87R57-Y0.25KW，SFAF87R57-Y0.37KW，SFAF87R57-Y0.55KW，SFAF87R57-Y0.75KW，SFAF87R57-Y1.1KW，SFAF87R57-Y1.5KW，SFAF87R57-Y63M4，SFAF87R57-Y71M4，SFAF87R57-Y80M4，SFAF87R57-Y90M4，SFAF87RF57-Y63M4，SFAF87RF57-Y71M4，SFAF87RF57-Y80M4，SFAF87RF57-Y90M4，SFAF87RF57-YB63M4，SFAF87RF57-YB71M4，SFAF87RF57-YB80M4，SFAF87RF57-YB90S4，SFAF87RF57-YDP63M4，SFAF87RF57-YDP71M4，SFAF87RF57-YDP80M4，SFAF87RF57-YDP90S4，SFAF87RF57-YE63M4，SFAF87RF57-YE71M4，SFAF87RF57-YE80M4，SFAF87RF57-YE90S4，SFAF87RF57-YEJ63M4，SFAF87RF57-YEJ71M4，SFAF87RF57-YEJ80M4，SFAF87RF57-YEJ90S4，SFAF87RF57-YEJB63M4，SFAF87RF57-YEJB71M4，SFAF87RF57-YEJB80M4，SFAF87RF57-YEJB90S4，SFAF87RF57-YP63M4，SFAF87RF57-YP71M4，SFAF87RF57-YP80M4，SFAF87RF57-YP90S4，SFAF87RF57-YPB63M4，SFAF87RF57-YPB71M4，SFAF87RF57-YPB80M4，SFAF87RF57-YPB90S4，SFAF87RF57-YPE63M4，SFAF87RF57-YPE71M4，SFAF87RF57-YPE80M4，SFAF87RF57-YPE90S4，SFAF87RF57-YS63M4，SFAF87RF57-YS71M4，SFAF87RF57-YS80M4，SFAF87RF57-YS90S4，SFAF87RF57-YVB63M4，SFAF87RF57-YVB71M4，SFAF87RF57-YVB80M4，SFAF87RF57-YVB90S4，SFAF87RF57-YVP63M4，SFAF87RF57-YVP71M4，SFAF87RF57-YVP80M4，SFAF87RF57-YVP90S4，SFAF87RF57-YVPEJ63M4，SFAF87RF57-YVPEJ71M4，SFAF87RF57-YVPEJ80M4，SFAF87RF57-YVPEJ90S4，XDFAF87R57-Y0.12KW，XDFAF87R57-Y0.18KW，XDFAF87R57-Y0.25KW，XDFAF87R57-Y0.37KW，XDFAF87R57-Y0.55KW，XDFAF87R57-Y0.75KW，XDFAF87R57-Y1.1KW，XDFAF87R57-Y1.5KW，XDFAF87R57-Y63M4，XDFAF87R57-Y71M4，XDFAF87R57-Y80M4，XDFAF87R57-Y90M4，XDFAF87RF57-Y63M4，XDFAF87RF57-Y71M4，XDFAF87RF57-Y80M4，XDFAF87RF57-Y90M4，XDFAF87RF57-YB63M4，XDFAF87RF57-YB71M4，XDFAF87RF57-YB80M4，XDFAF87RF57-YB90S4，XDFAF87RF57-YDP63M4，XDFAF87RF57-YDP71M4，XDFAF87RF57-YDP80M4，XDFAF87RF57-YDP90S4，XDFAF87RF57-YE63M4，XDFAF87RF57-YE71M4，XDFAF87RF57-YE80M4，XDFAF87RF57-YE90S4，XDFAF87RF57-YEJ63M4，XDFAF87RF57-YEJ71M4，XDFAF87RF57-YEJ80M4，XDFAF87RF57-YEJ90S4，XDFAF87RF57-YEJB63M4，XDFAF87RF57-YEJB71M4，XDFAF87RF57-YEJB80M4，XDFAF87RF57-YEJB90S4，XDFAF87RF57-YP63M4，XDFAF87RF57-YP71M4，XDFAF87RF57-YP80M4，XDFAF87RF57-YP90S4，XDFAF87RF57-YPB63M4，XDFAF87RF57-YPB71M4，XDFAF87RF57-YPB80M4，XDFAF87RF57-YPB90S4，XDFAF87RF57-YPE63M4，XDFAF87RF57-YPE71M4，XDFAF87RF57-YPE80M4，XDFAF87RF57-YPE90S4，XDFAF87RF57-YS63M4，XDFAF87RF57-YS71M4，XDFAF87RF57-YS80M4，XDFAF87RF57-YS90S4，XDFAF87RF57-YVB63M4，XDFAF87RF57-YVB71M4，XDFAF87RF57-YVB80M4，XDFAF87RF57-YVB90S4，XDFAF87RF57-YVP63M4，XDFAF87RF57-YVP71M4，XDFAF87RF57-YVP80M4，XDFAF87RF57-YVP90S4，XDFAF87RF57-YVPEJ63M4，XDFAF87RF57-YVPEJ71M4，XDFAF87RF57-YVPEJ80M4，XDFAF87RF57-YVPEJ90S4，F(xiàn)WAF87RW57-Y0.12KW，F(xiàn)WAF87RW57-Y0.18KW，F(xiàn)WAF87RW57-Y0.25KW，F(xiàn)WAF87RW57-Y0.37KW，F(xiàn)WAF87RW57-Y0.55KW，F(xiàn)WAF87RW57-Y0.75KW，F(xiàn)WAF87RW57-Y1.1KW，F(xiàn)WAF87RW57-Y1.5KW，F(xiàn)WAF87RW57-Y63M4，F(xiàn)WAF87RW57-Y71M4，F(xiàn)WAF87RW57-Y80M4，F(xiàn)WAF87RW57-Y90M4，F(xiàn)WAF87RWFAF57-Y63M4，F(xiàn)WAF87RWFAF57-Y71M4，F(xiàn)WAF87RWFAF57-Y80M4，F(xiàn)WAF87RWFAF57-Y90M4，F(xiàn)WAF87RWFAF57-YB63M4，F(xiàn)WAF87RWFAF57-YB71M4，F(xiàn)WAF87RWFAF57-YB80M4，F(xiàn)WAF87RWFAF57-YB90S4，F(xiàn)WAF87RWFAF57-YDP63M4，F(xiàn)WAF87RWFAF57-YDP71M4，F(xiàn)WAF87RWFAF57-YDP80M4，F(xiàn)WAF87RWFAF57-YDP90S4，F(xiàn)WAF87RWFAF57-YE63M4，F(xiàn)WAF87RWFAF57-YE71M4，F(xiàn)WAF87RWFAF57-YE80M4，F(xiàn)WAF87RWFAF57-YE90S4，F(xiàn)WAF87RWFAF57-YEJ63M4，F(xiàn)WAF87RWFAF57-YEJ71M4，F(xiàn)WAF87RWFAF57-YEJ80M4，F(xiàn)WAF87RWFAF57-YEJ90S4，F(xiàn)WAF87RWFAF57-YEJB63M4，F(xiàn)WAF87RWFAF57-YEJB71M4，F(xiàn)WAF87RWFAF57-YEJB80M4，F(xiàn)WAF87RWFAF57-YEJB90S4，F(xiàn)WAF87RWFAF57-YP63M4，F(xiàn)WAF87RWFAF57-YP71M4，F(xiàn)WAF87RWFAF57-YP80M4，F(xiàn)WAF87RWFAF57-YP90S4，F(xiàn)WAF87RWFAF57-YPB63M4，F(xiàn)WAF87RWFAF57-YPB71M4，F(xiàn)WAF87RWFAF57-YPB80M4，F(xiàn)WAF87RWFAF57-YPB90S4，F(xiàn)WAF87RWFAF57-YPE63M4，F(xiàn)WAF87RWFAF57-YPE71M4，F(xiàn)WAF87RWFAF57-YPE80M4，F(xiàn)WAF87RWFAF57-YPE90S4，F(xiàn)WAF87RWFAF57-YS63M4，F(xiàn)WAF87RWFAF57-YS71M4，F(xiàn)WAF87RWFAF57-YS80M4，F(xiàn)WAF87RWFAF57-YS90S4，F(xiàn)WAF87RWFAF57-YVB63M4，F(xiàn)WAF87RWFAF57-YVB71M4，F(xiàn)WAF87RWFAF57-YVB80M4，F(xiàn)WAF87RWFAF57-YVB90S4，F(xiàn)WAF87RWFAF57-YVP63M4，F(xiàn)WAF87RWFAF57-YVP71M4，F(xiàn)WAF87RWFAF57-YVP80M4，F(xiàn)WAF87RWFAF57-YVP90S4，F(xiàn)WAF87RWFAF57-YVPEJ63M4，F(xiàn)WAF87RWFAF57-YVPEJ71M4，F(xiàn)WAF87RWFAF57-YVPEJ80M4，F(xiàn)WAF87RWFAF57-YVPEJ90S4，F(xiàn)AF89R59-Y0.12KW，F(xiàn)AF89R59-Y0.18KW，F(xiàn)AF89R59-Y0.25KW，F(xiàn)AF89R59-Y0.37KW，F(xiàn)AF89R59-Y0.55KW，F(xiàn)AF89R59-Y0.75KW，F(xiàn)AF89R59-Y1.1KW，F(xiàn)AF89R59-Y1.5KW，F(xiàn)AF89R59-Y63M4，F(xiàn)AF89R59-Y71M4，F(xiàn)AF89R59-Y80M4，F(xiàn)AF89R59-Y90M4，F(xiàn)AF89RF59-Y63M4，F(xiàn)AF89RF59-Y71M4，F(xiàn)AF89RF59-Y80M4，F(xiàn)AF89RF59-Y90M4，F(xiàn)AF89RF59-YB63M4，F(xiàn)AF89RF59-YB71M4，F(xiàn)AF89RF59-YB80M4，F(xiàn)AF89RF59-YB90S4，F(xiàn)AF89RF59-YDP63M4，F(xiàn)AF89RF59-YDP71M4，F(xiàn)AF89RF59-YDP80M4，F(xiàn)AF89RF59-YDP90S4，F(xiàn)AF89RF59-YE63M4，F(xiàn)AF89RF59-YE71M4，F(xiàn)AF89RF59-YE80M4，F(xiàn)AF89RF59-YE90S4，F(xiàn)AF89RF59-YEJ63M4，F(xiàn)AF89RF59-YEJ71M4，F(xiàn)AF89RF59-YEJ80M4，F(xiàn)AF89RF59-YEJ90S4，F(xiàn)AF89RF59-YEJB63M4，F(xiàn)AF89RF59-YEJB71M4，F(xiàn)AF89RF59-YEJB80M4，F(xiàn)AF89RF59-YEJB90S4，F(xiàn)AF89RF59-YP63M4，F(xiàn)AF89RF59-YP71M4，F(xiàn)AF89RF59-YP80M4，F(xiàn)AF89RF59-YP90S4，F(xiàn)AF89RF59-YPB63M4，F(xiàn)AF89RF59-YPB71M4，F(xiàn)AF89RF59-YPB80M4，F(xiàn)AF89RF59-YPB90S4，F(xiàn)AF89RF59-YPE63M4，F(xiàn)AF89RF59-YPE71M4，F(xiàn)AF89RF59-YPE80M4，F(xiàn)AF89RF59-YPE90S4，F(xiàn)AF89RF59-YS63M4，F(xiàn)AF89RF59-YS71M4，F(xiàn)AF89RF59-YS80M4，F(xiàn)AF89RF59-YS90S4，F(xiàn)AF89RF59-YVB63M4，F(xiàn)AF89RF59-YVB71M4，F(xiàn)AF89RF59-YVB80M4，F(xiàn)AF89RF59-YVB90S4，F(xiàn)AF89RF59-YVP63M4，F(xiàn)AF89RF59-YVP71M4，F(xiàn)AF89RF59-YVP80M4，F(xiàn)AF89RF59-YVP90S4，F(xiàn)AF89RF59-YVPEJ63M4，F(xiàn)AF89RF59-YVPEJ71M4，F(xiàn)AF89RF59-YVPEJ80M4，F(xiàn)AF89RF59-YVPEJ90S4。

FAF89R59減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-fafxiliejiansuji-cn.html

推薦型號：F89減速機
