KA189減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189減速器選型樣本。

KA189-BVB-45KW-4P-165.21-M5-180°

KA：系列代號

189：減速機規格代號

BVB：電機

45KW：電機功率

4P：電機級數

165.21：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

KA189減速器逆止器安裝：

KA189減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

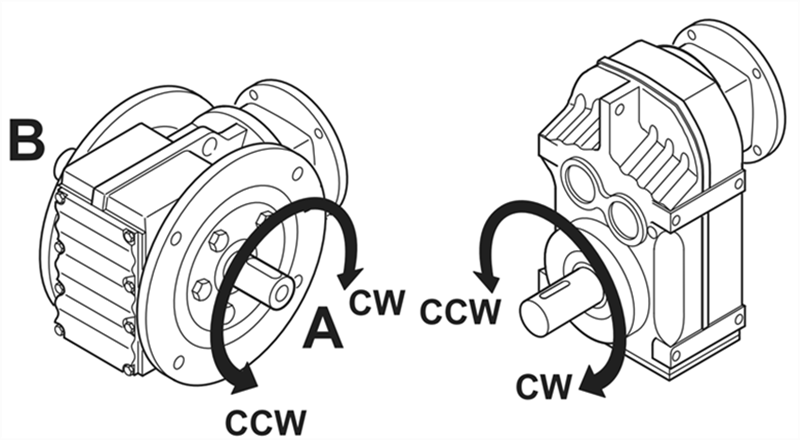

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA189減速器潤滑油更換：

由于KA189減速器發熱或KA189減速器油溫過高可能引起燙傷，對KA189減速器進行操作前先冷卻，KA189減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA189減速器電機型號：

KWA187-Y110KWA，KWA187-Y132KWA，KWA187-Y160KWA，KWA187-Y18.5KWA，KWA187-Y180M4，KWA187-Y200KWA，KWA187-Y200M4，KWA187-Y225M4，KWA187-Y22KWA，KWA187-Y250M4，KWA187-Y280M4，KWA187-Y30KWA，KWA187-Y315M4，KWA187-Y37KWA，KWA187-Y45KWA，KWA187-Y55KWA，KWA187-Y75KWA，KWA187-Y90KWA，KWA187-YB180M4，KWA187-YB200M4，KWA187-YB225M4，KWA187-YB250M4，KWA187-YB280M4，KWA187-YB315M4，KWA187-YDP180M4，KWA187-YDP200M4，KWA187-YDP225M4，KWA187-YDP250M4，KWA187-YDP280M4，KWA187-YDP315M4，KWA187-YE180M4，KWA187-YE200M4，KWA187-YE225M4，KWA187-YE250M4，KWA187-YE280M4，KWA187-YE315M4，KWA187-YEJ180M4，KWA187-YEJ200M4，KWA187-YEJ225M4，KWA187-YEJ250M4，KWA187-YEJ280M4，KWA187-YEJ315M4，KWA187-YEJB180M4，KWA187-YEJB200M4，KWA187-YEJB225M4，KWA187-YEJB250M4，KWA187-YEJB280M4，KWA187-YEJB315M4，KWA187-YP180M4，KWA187-YP200M4，KWA187-YP225M4，KWA187-YP250M4，KWA187-YP280M4，KWA187-YP315M4，KWA187-YPB180M4，KWA187-YPB200M4，KWA187-YPB225M4，KWA187-YPB250M4，KWA187-YPB280M4，KWA187-YPB315M4，KWA187-YPE180M4，KWA187-YPE200M4，KWA187-YPE225M4，KWA187-YPE250M4，KWA187-YPE280M4，KWA187-YPE315M4，KWA187-YS180M4，KWA187-YS200M4，KWA187-YS225M4，KWA187-YS250M4，KWA187-YS280M4，KWA187-YS315M4，KWA187-YVB180M4，KWA187-YVB200M4，KWA187-YVB225M4，KWA187-YVB250M4，KWA187-YVB280M4，KWA187-YVB315M4，KWA187-YVP180M4，KWA187-YVP200M4，KWA187-YVP225M4，KWA187-YVP250M4，KWA187-YVP280M4，KWA187-YVP315M4，KWA187-YVPEJ180M4，KWA187-YVPEJ200M4，KWA187-YVPEJ225M4，KWA187-YVPEJ250M4，KWA187-YVPEJ280M4，KWA187-YVPEJ315M4，XDKA187-Y110KWA，XDKA187-Y132KWA，XDKA187-Y160KWA，XDKA187-Y18.5KWA，XDKA187-Y180M4，XDKA187-Y200KWA，XDKA187-Y200M4，XDKA187-Y225M4，XDKA187-Y22KWA，XDKA187-Y250M4，XDKA187-Y280M4，XDKA187-Y30KWA，XDKA187-Y315M4，XDKA187-Y37KWA，XDKA187-Y45KWA，XDKA187-Y55KWA，XDKA187-Y75KWA，XDKA187-Y90KWA，XDKA187-YB180M4，XDKA187-YB200M4，XDKA187-YB225M4，XDKA187-YB250M4，XDKA187-YB280M4，XDKA187-YB315M4，XDKA187-YDP180M4，XDKA187-YDP200M4，XDKA187-YDP225M4，XDKA187-YDP250M4，XDKA187-YDP280M4，XDKA187-YDP315M4，XDKA187-YE180M4，XDKA187-YE200M4，XDKA187-YE225M4，XDKA187-YE250M4，XDKA187-YE280M4，XDKA187-YE315M4，XDKA187-YEJ180M4，XDKA187-YEJ200M4，XDKA187-YEJ225M4，XDKA187-YEJ250M4，XDKA187-YEJ280M4，XDKA187-YEJ315M4，XDKA187-YEJB180M4，XDKA187-YEJB200M4，XDKA187-YEJB225M4，XDKA187-YEJB250M4，XDKA187-YEJB280M4，XDKA187-YEJB315M4，XDKA187-YP180M4，XDKA187-YP200M4，XDKA187-YP225M4，XDKA187-YP250M4，XDKA187-YP280M4，XDKA187-YP315M4，XDKA187-YPB180M4，XDKA187-YPB200M4，XDKA187-YPB225M4，XDKA187-YPB250M4，XDKA187-YPB280M4，XDKA187-YPB315M4，XDKA187-YPE180M4，XDKA187-YPE200M4，XDKA187-YPE225M4，XDKA187-YPE250M4，XDKA187-YPE280M4，XDKA187-YPE315M4，XDKA187-YS180M4，XDKA187-YS200M4，XDKA187-YS225M4，XDKA187-YS250M4，XDKA187-YS280M4，XDKA187-YS315M4，XDKA187-YVB180M4，XDKA187-YVB200M4，XDKA187-YVB225M4，XDKA187-YVB250M4，XDKA187-YVB280M4，XDKA187-YVB315M4，XDKA187-YVP180M4，XDKA187-YVP200M4，XDKA187-YVP225M4，XDKA187-YVP250M4，XDKA187-YVP280M4，XDKA187-YVP315M4，XDKA187-YVPEJ180M4，XDKA187-YVPEJ200M4，XDKA187-YVPEJ225M4，XDKA187-YVPEJ250M4，XDKA187-YVPEJ280M4，XDKA187-YVPEJ315M4，YQKA187-Y110KWA，YQKA187-Y132KWA，YQKA187-Y160KWA，YQKA187-Y18.5KWA，YQKA187-Y180M4，YQKA187-Y200KWA，YQKA187-Y200M4，YQKA187-Y225M4，YQKA187-Y22KWA，YQKA187-Y250M4，YQKA187-Y280M4，YQKA187-Y30KWA，YQKA187-Y315M4，YQKA187-Y37KWA，YQKA187-Y45KWA，YQKA187-Y55KWA，YQKA187-Y75KWA，YQKA187-Y90KWA，YQKA187-YB180M4，YQKA187-YB200M4，YQKA187-YB225M4，YQKA187-YB250M4，YQKA187-YB280M4，YQKA187-YB315M4，YQKA187-YDP180M4，YQKA187-YDP200M4，YQKA187-YDP225M4，YQKA187-YDP250M4，YQKA187-YDP280M4，YQKA187-YDP315M4，YQKA187-YE180M4，YQKA187-YE200M4，YQKA187-YE225M4，YQKA187-YE250M4，YQKA187-YE280M4，YQKA187-YE315M4，YQKA187-YEJ180M4，YQKA187-YEJ200M4，YQKA187-YEJ225M4，YQKA187-YEJ250M4，YQKA187-YEJ280M4，YQKA187-YEJ315M4，YQKA187-YEJB180M4，YQKA187-YEJB200M4，YQKA187-YEJB225M4，YQKA187-YEJB250M4，YQKA187-YEJB280M4，YQKA187-YEJB315M4，YQKA187-YP180M4，YQKA187-YP200M4，YQKA187-YP225M4，YQKA187-YP250M4，YQKA187-YP280M4，YQKA187-YP315M4，YQKA187-YPB180M4，YQKA187-YPB200M4，YQKA187-YPB225M4，YQKA187-YPB250M4，YQKA187-YPB280M4，YQKA187-YPB315M4，YQKA187-YPE180M4，YQKA187-YPE200M4，YQKA187-YPE225M4，YQKA187-YPE250M4，YQKA187-YPE280M4，YQKA187-YPE315M4，YQKA187-YS180M4，YQKA187-YS200M4，YQKA187-YS225M4，YQKA187-YS250M4，YQKA187-YS280M4，YQKA187-YS315M4，YQKA187-YVB180M4，YQKA187-YVB200M4，YQKA187-YVB225M4，YQKA187-YVB250M4，YQKA187-YVB280M4，YQKA187-YVB315M4，YQKA187-YVP180M4，YQKA187-YVP200M4，YQKA187-YVP225M4，YQKA187-YVP250M4，YQKA187-YVP280M4，YQKA187-YVP315M4，YQKA187-YVPEJ180M4，YQKA187-YVPEJ200M4，YQKA187-YVPEJ225M4，YQKA187-YVPEJ250M4，YQKA187-YVPEJ280M4，YQKA187-YVPEJ315M4，JCKA187-Y110KWA，JCKA187-Y132KWA，JCKA187-Y160KWA，JCKA187-Y18.5KWA，JCKA187-Y180M4，JCKA187-Y200KWA，JCKA187-Y200M4，JCKA187-Y225M4，JCKA187-Y22KWA，JCKA187-Y250M4，JCKA187-Y280M4，JCKA187-Y30KWA，JCKA187-Y315M4，JCKA187-Y37KWA，JCKA187-Y45KWA，JCKA187-Y55KWA，JCKA187-Y75KWA，JCKA187-Y90KWA，JCKA187-YB180M4，JCKA187-YB200M4，JCKA187-YB225M4，JCKA187-YB250M4，JCKA187-YB280M4，JCKA187-YB315M4，JCKA187-YDP180M4，JCKA187-YDP200M4，JCKA187-YDP225M4，JCKA187-YDP250M4，JCKA187-YDP280M4，JCKA187-YDP315M4，JCKA187-YE180M4，JCKA187-YE200M4，JCKA187-YE225M4，JCKA187-YE250M4，JCKA187-YE280M4，JCKA187-YE315M4，JCKA187-YEJ180M4，JCKA187-YEJ200M4，JCKA187-YEJ225M4，JCKA187-YEJ250M4，JCKA187-YEJ280M4，JCKA187-YEJ315M4，JCKA187-YEJB180M4，JCKA187-YEJB200M4，JCKA187-YEJB225M4，JCKA187-YEJB250M4，JCKA187-YEJB280M4，JCKA187-YEJB315M4，JCKA187-YP180M4，JCKA187-YP200M4，JCKA187-YP225M4，JCKA187-YP250M4，JCKA187-YP280M4，JCKA187-YP315M4，JCKA187-YPB180M4，JCKA187-YPB200M4，JCKA187-YPB225M4，JCKA187-YPB250M4，JCKA187-YPB280M4，JCKA187-YPB315M4，JCKA187-YPE180M4，JCKA187-YPE200M4，JCKA187-YPE225M4，JCKA187-YPE250M4，JCKA187-YPE280M4，JCKA187-YPE315M4，JCKA187-YS180M4，JCKA187-YS200M4，JCKA187-YS225M4，JCKA187-YS250M4，JCKA187-YS280M4，JCKA187-YS315M4，JCKA187-YVB180M4，JCKA187-YVB200M4，JCKA187-YVB225M4，JCKA187-YVB250M4，JCKA187-YVB280M4，JCKA187-YVB315M4，JCKA187-YVP180M4，JCKA187-YVP200M4，JCKA187-YVP225M4，JCKA187-YVP250M4，JCKA187-YVP280M4，JCKA187-YVP315M4，JCKA187-YVPEJ180M4，JCKA187-YVPEJ200M4，JCKA187-YVPEJ225M4，JCKA187-YVPEJ250M4，JCKA187-YVPEJ280M4，JCKA187-YVPEJ315M4，KA189-Y110KWA，KA189-Y132KWA，KA189-Y160KWA，KA189-Y18.5KWA，KA189-Y180M4，KA189-Y200KWA，KA189-Y200M4，KA189-Y225M4，KA189-Y22KWA，KA189-Y250M4，KA189-Y280M4，KA189-Y30KWA，KA189-Y315M4，KA189-Y37KWA，KA189-Y45KWA，KA189-Y55KWA，KA189-Y75KWA，KA189-Y90KWA，KA189-YB180M4，KA189-YB200M4，KA189-YB225M4，KA189-YB250M4，KA189-YB280M4，KA189-YB315M4，KA189-YDP180M4，KA189-YDP200M4，KA189-YDP225M4，KA189-YDP250M4，KA189-YDP280M4，KA189-YDP315M4，KA189-YE180M4，KA189-YE200M4，KA189-YE225M4，KA189-YE250M4，KA189-YE280M4，KA189-YE315M4，KA189-YEJ180M4，KA189-YEJ200M4，KA189-YEJ225M4，KA189-YEJ250M4，KA189-YEJ280M4，KA189-YEJ315M4，KA189-YEJB180M4，KA189-YEJB200M4，KA189-YEJB225M4，KA189-YEJB250M4，KA189-YEJB280M4，KA189-YEJB315M4，KA189-YP180M4，KA189-YP200M4，KA189-YP225M4，KA189-YP250M4，KA189-YP280M4，KA189-YP315M4，KA189-YPB180M4，KA189-YPB200M4，KA189-YPB225M4，KA189-YPB250M4，KA189-YPB280M4，KA189-YPB315M4，KA189-YPE180M4，KA189-YPE200M4，KA189-YPE225M4，KA189-YPE250M4，KA189-YPE280M4，KA189-YPE315M4，KA189-YS180M4，KA189-YS200M4，KA189-YS225M4，KA189-YS250M4，KA189-YS280M4，KA189-YS315M4，KA189-YVB180M4，KA189-YVB200M4，KA189-YVB225M4，KA189-YVB250M4，KA189-YVB280M4，KA189-YVB315M4，KA189-YVP180M4，KA189-YVP200M4，KA189-YVP225M4，KA189-YVP250M4，KA189-YVP280M4，KA189-YVP315M4，KA189-YVPEJ180M4，KA189-YVPEJ200M4，KA189-YVPEJ225M4，KA189-YVPEJ250M4，KA189-YVPEJ280M4，KA189-YVPEJ315M4，KA187SF80，KA187SF90，KA187SF100，KA187SF112，KA187SF115，KA187SF140，KA187SF160，KA187SF190。
