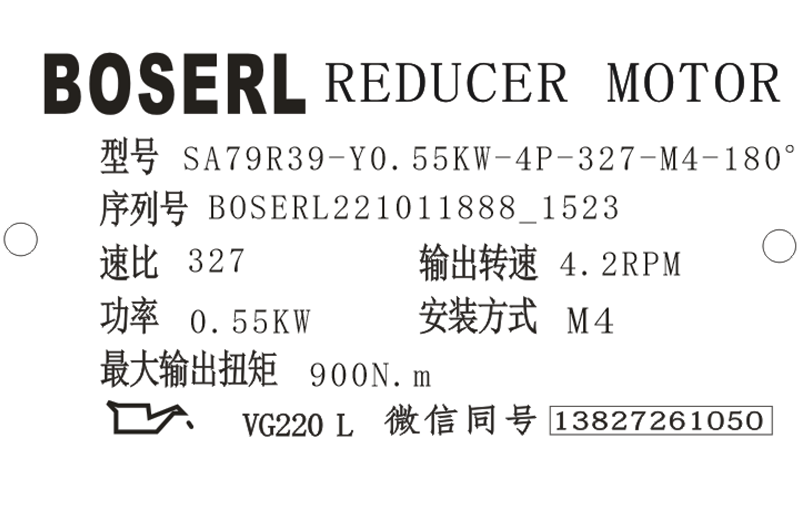

SA79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA79R39減速機選型樣本。

SA79R39-Y0.55KW-4P-327-M4-180°

SA/R：系列代號

79/39：減速機規格代號

Y：電機

0.55KW：電機功率

4P：電機級數

327：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

SA79R39減速機電機檢查危險事項：

必須遵循危險區域用電氣設備連線和用法的相關標準。只有經嚴格訓練且熟悉相關標準的專業人員才允許操作這一類SA79R39減速機電機。

根據所述工作的特性，在對SA79R39減速機電機或所驅動設備進行操作前，先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在。齒輪減速電機

在運轉過程中進行保養、檢查時，請絕對不要觸及旋轉體(旋轉軸等)。否則有可能會被卷入，發生人身事故。

停止時檢查齒面狀況時，請切實進行驅動機、被動機的止轉。否則有可能會被卷入齒輪嚙合部分，發生人身事故。

施加規定值以上的負載也會降低電機和齒輪的壽命，導致SA79R39減速機電機損傷。(制動器部分的檢查、保養)

請勿在用手動釋放桿釋放制動器的狀態下進行運轉。否則有可能會導致墜落、失控事故。

進行正式運轉前，接通和切斷電源，確認制動器的動作。否則有可能會導致墜落、失控事故。

檢查、調整間隙后，請勿在拆下風扇罩的狀態下運轉電機。否則有可能會被卷入、受傷。自鎖減速機

用于升降時，請勿在起吊負載狀態下進行釋放制動器的操作。否則有可能會導致墜落事故。

SA79R39減速機電機震動解決方案：

電機不對中，重新對中；

支撐太弱，加固基座；

電機裝配螺釘松動，擰緊螺釘；

聯軸器不平衡，校正聯軸器平衡；

所驅動設備不平衡，校正所驅動設備平衡；

轉子不平衡量大，更換轉子；

軸承損壞，更換軸承；

電機缺相運行:電源接觸不良，修復觸點及電源線路；

電機缺相運行:線圈斷路，更換定子線圈；

軸向竄動太大，調節軸承或增加墊片；伺服電機連接減速機

線圈內有一個線苞嵌反，更換定子線圈。

SA79R39減速電機型號：

YQSA77R37-Y63M4，YQSA77R37-Y71M4，YQSA77R37-Y80M4，YQSA77R37-Y90M4，YQSA77RF37-Y0.12KW，YQSA77RF37-Y0.18KW，YQSA77RF37-Y0.25KW，YQSA77RF37-Y0.37KW，YQSA77RF37-Y0.55KW，YQSA77RF37-Y0.75KW，YQSA77RF37-Y1.1KW，YQSA77RF37-Y63M4，YQSA77RF37-Y71M4，YQSA77RF37-Y80M4，YQSA77RF37-Y90M4，YQSA77RF37-YB63M4，YQSA77RF37-YB71M4，YQSA77RF37-YB80M4，YQSA77RF37-YB90S4，YQSA77RF37-YDP63M4，YQSA77RF37-YDP71M4，YQSA77RF37-YDP80M4，YQSA77RF37-YDP90S4，YQSA77RF37-YE63M4，YQSA77RF37-YE71M4，YQSA77RF37-YE80M4，YQSA77RF37-YE90S4，YQSA77RF37-YEJ63M4，YQSA77RF37-YEJ71M4，YQSA77RF37-YEJ80M4，YQSA77RF37-YEJ90S4，YQSA77RF37-YEJB63M4，YQSA77RF37-YEJB71M4，YQSA77RF37-YEJB80M4，YQSA77RF37-YEJB90S4，YQSA77RF37-YP63M4，YQSA77RF37-YP71M4，YQSA77RF37-YP80M4，YQSA77RF37-YP90S4，YQSA77RF37-YPB63M4，YQSA77RF37-YPB71M4，YQSA77RF37-YPB80M4，YQSA77RF37-YPB90S4，YQSA77RF37-YPE63M4，YQSA77RF37-YPE71M4，YQSA77RF37-YPE80M4，YQSA77RF37-YPE90S4，YQSA77RF37-YSA63M4，YQSA77RF37-YSA71M4，YQSA77RF37-YSA80M4，YQSA77RF37-YSA90S4，YQSA77RF37-YVB63M4，YQSA77RF37-YVB71M4，YQSA77RF37-YVB80M4，YQSA77RF37-YVB90S4，YQSA77RF37-YVP63M4，YQSA77RF37-YVP71M4，YQSA77RF37-YVP80M4，YQSA77RF37-YVP90S4，ASA77R37-Y63M4，ASA77R37-Y71M4，ASA77R37-Y80M4，ASA77R37-Y90M4，ASA77RF37-Y0.12KW，ASA77RF37-Y0.18KW，ASA77RF37-Y0.25KW，ASA77RF37-Y0.37KW，ASA77RF37-Y0.55KW，ASA77RF37-Y0.75KW，ASA77RF37-Y1.1KW，ASA77RF37-Y63M4，ASA77RF37-Y71M4，ASA77RF37-Y80M4，ASA77RF37-Y90M4，ASA77RF37-YB63M4，ASA77RF37-YB71M4，ASA77RF37-YB80M4，ASA77RF37-YB90S4，ASA77RF37-YDP63M4，ASA77RF37-YDP71M4，ASA77RF37-YDP80M4，ASA77RF37-YDP90S4，ASA77RF37-YE63M4，ASA77RF37-YE71M4，ASA77RF37-YE80M4，ASA77RF37-YE90S4，ASA77RF37-YEJ63M4，ASA77RF37-YEJ71M4，ASA77RF37-YEJ80M4，ASA77RF37-YEJ90S4，ASA77RF37-YEJB63M4，ASA77RF37-YEJB71M4，ASA77RF37-YEJB80M4，ASA77RF37-YEJB90S4，ASA77RF37-YP63M4，ASA77RF37-YP71M4，ASA77RF37-YP80M4，ASA77RF37-YP90S4，ASA77RF37-YPB63M4，ASA77RF37-YPB71M4，ASA77RF37-YPB80M4，ASA77RF37-YPB90S4，ASA77RF37-YPE63M4，ASA77RF37-YPE71M4，ASA77RF37-YPE80M4，ASA77RF37-YPE90S4，ASA77RF37-YSA63M4，ASA77RF37-YSA71M4，ASA77RF37-YSA80M4，ASA77RF37-YSA90S4，ASA77RF37-YVB63M4，ASA77RF37-YVB71M4，ASA77RF37-YVB80M4，ASA77RF37-YVB90S4，ASA77RF37-YVP63M4，ASA77RF37-YVP71M4，ASA77RF37-YVP80M4，ASA77RF37-YVP90S4，SSA77R37-Y63M4，SSA77R37-Y71M4，SSA77R37-Y80M4，SSA77R37-Y90M4，SSA77RF37-Y0.12KW，SSA77RF37-Y0.18KW，SSA77RF37-Y0.25KW，SSA77RF37-Y0.37KW，SSA77RF37-Y0.55KW，SSA77RF37-Y0.75KW，SSA77RF37-Y1.1KW，SSA77RF37-Y63M4，SSA77RF37-Y71M4，SSA77RF37-Y80M4，SSA77RF37-Y90M4，SSA77RF37-YB63M4，SSA77RF37-YB71M4，SSA77RF37-YB80M4，SSA77RF37-YB90S4，SSA77RF37-YDP63M4，SSA77RF37-YDP71M4，SSA77RF37-YDP80M4，SSA77RF37-YDP90S4，SSA77RF37-YE63M4，SSA77RF37-YE71M4，SSA77RF37-YE80M4，SSA77RF37-YE90S4，SSA77RF37-YEJ63M4，SSA77RF37-YEJ71M4，SSA77RF37-YEJ80M4，SSA77RF37-YEJ90S4，SSA77RF37-YEJB63M4，SSA77RF37-YEJB71M4，SSA77RF37-YEJB80M4，SSA77RF37-YEJB90S4，SSA77RF37-YP63M4，SSA77RF37-YP71M4，SSA77RF37-YP80M4，SSA77RF37-YP90S4，SSA77RF37-YPB63M4，SSA77RF37-YPB71M4，SSA77RF37-YPB80M4，SSA77RF37-YPB90S4，SSA77RF37-YPE63M4，SSA77RF37-YPE71M4，SSA77RF37-YPE80M4，SSA77RF37-YPE90S4，SSA77RF37-YSA63M4，SSA77RF37-YSA71M4，SSA77RF37-YSA80M4，SSA77RF37-YSA90S4，SSA77RF37-YVB63M4，SSA77RF37-YVB71M4，SSA77RF37-YVB80M4，SSA77RF37-YVB90S4，SSA77RF37-YVP63M4，SSA77RF37-YVP71M4，SSA77RF37-YVP80M4，SSA77RF37-YVP90S4，WSA77R37-Y63M4，WSA77R37-Y71M4，WSA77R37-Y80M4，WSA77R37-Y90M4，WSA77RF37-Y0.12KW，WSA77RF37-Y0.18KW，WSA77RF37-Y0.25KW，WSA77RF37-Y0.37KW，WSA77RF37-Y0.55KW，WSA77RF37-Y0.75KW，WSA77RF37-Y1.1KW，WSA77RF37-Y63M4，WSA77RF37-Y71M4，WSA77RF37-Y80M4，WSA77RF37-Y90M4，WSA77RF37-YB63M4，WSA77RF37-YB71M4，WSA77RF37-YB80M4，WSA77RF37-YB90S4，WSA77RF37-YDP63M4，WSA77RF37-YDP71M4，WSA77RF37-YDP80M4，WSA77RF37-YDP90S4，WSA77RF37-YE63M4，WSA77RF37-YE71M4，WSA77RF37-YE80M4，WSA77RF37-YE90S4，WSA77RF37-YEJ63M4，WSA77RF37-YEJ71M4，WSA77RF37-YEJ80M4，WSA77RF37-YEJ90S4，WSA77RF37-YEJB63M4，WSA77RF37-YEJB71M4，WSA77RF37-YEJB80M4，WSA77RF37-YEJB90S4，WSA77RF37-YP63M4，WSA77RF37-YP71M4，WSA77RF37-YP80M4，WSA77RF37-YP90S4，WSA77RF37-YPB63M4，WSA77RF37-YPB71M4，WSA77RF37-YPB80M4，WSA77RF37-YPB90S4，WSA77RF37-YPE63M4，WSA77RF37-YPE71M4，WSA77RF37-YPE80M4，WSA77RF37-YPE90S4，WSA77RF37-YSA63M4，WSA77RF37-YSA71M4，WSA77RF37-YSA80M4，WSA77RF37-YSA90S4，WSA77RF37-YVB63M4，WSA77RF37-YVB71M4，WSA77RF37-YVB80M4，WSA77RF37-YVB90S4，WSA77RF37-YVP63M4，WSA77RF37-YVP71M4，WSA77RF37-YVP80M4，WSA77RF37-YVP90S4，XDSA77R37-Y63M4，XDSA77R37-Y71M4，XDSA77R37-Y80M4，XDSA77R37-Y90M4，XDSA77RF37-Y0.12KW，XDSA77RF37-Y0.18KW，XDSA77RF37-Y0.25KW，XDSA77RF37-Y0.37KW，XDSA77RF37-Y0.55KW，XDSA77RF37-Y0.75KW，XDSA77RF37-Y1.1KW，XDSA77RF37-Y63M4，XDSA77RF37-Y71M4，XDSA77RF37-Y80M4，XDSA77RF37-Y90M4，XDSA77RF37-YB63M4，XDSA77RF37-YB71M4，XDSA77RF37-YB80M4，XDSA77RF37-YB90S4，XDSA77RF37-YDP63M4，XDSA77RF37-YDP71M4，XDSA77RF37-YDP80M4，XDSA77RF37-YDP90S4，XDSA77RF37-YE63M4，XDSA77RF37-YE71M4，XDSA77RF37-YE80M4，XDSA77RF37-YE90S4，XDSA77RF37-YEJ63M4，XDSA77RF37-YEJ71M4，XDSA77RF37-YEJ80M4，XDSA77RF37-YEJ90S4，XDSA77RF37-YEJB63M4，XDSA77RF37-YEJB71M4，XDSA77RF37-YEJB80M4，XDSA77RF37-YEJB90S4，XDSA77RF37-YP63M4，XDSA77RF37-YP71M4，XDSA77RF37-YP80M4，XDSA77RF37-YP90S4，XDSA77RF37-YPB63M4，XDSA77RF37-YPB71M4，XDSA77RF37-YPB80M4，XDSA77RF37-YPB90S4，XDSA77RF37-YPE63M4，XDSA77RF37-YPE71M4，XDSA77RF37-YPE80M4，XDSA77RF37-YPE90S4，XDSA77RF37-YSA63M4，XDSA77RF37-YSA71M4，XDSA77RF37-YSA80M4，XDSA77RF37-YSA90S4，XDSA77RF37-YVB63M4，XDSA77RF37-YVB71M4，XDSA77RF37-YVB80M4，XDSA77RF37-YVB90S4，XDSA77RF37-YVP63M4，XDSA77RF37-YVP71M4，XDSA77RF37-YVP80M4，XDSA77RF37-YVP90S4，JCSA77R37-Y63M4，JCSA77R37-Y71M4，JCSA77R37-Y80M4，JCSA77R37-Y90M4，JCSA77RF37-Y0.12KW，JCSA77RF37-Y0.18KW，JCSA77RF37-Y0.25KW，JCSA77RF37-Y0.37KW，JCSA77RF37-Y0.55KW，JCSA77RF37-Y0.75KW，JCSA77RF37-Y1.1KW，JCSA77RF37-Y63M4，JCSA77RF37-Y71M4，JCSA77RF37-Y80M4，JCSA77RF37-Y90M4，JCSA77RF37-YB63M4，JCSA77RF37-YB71M4，JCSA77RF37-YB80M4，JCSA77RF37-YB90S4，JCSA77RF37-YDP63M4，JCSA77RF37-YDP71M4，JCSA77RF37-YDP80M4，JCSA77RF37-YDP90S4，JCSA77RF37-YE63M4，JCSA77RF37-YE71M4，JCSA77RF37-YE80M4，JCSA77RF37-YE90S4，JCSA77RF37-YEJ63M4，JCSA77RF37-YEJ71M4，JCSA77RF37-YEJ80M4，JCSA77RF37-YEJ90S4，JCSA77RF37-YEJB63M4，JCSA77RF37-YEJB71M4，JCSA77RF37-YEJB80M4，JCSA77RF37-YEJB90S4，JCSA77RF37-YP63M4，JCSA77RF37-YP71M4，JCSA77RF37-YP80M4，JCSA77RF37-YP90S4，JCSA77RF37-YPB63M4，JCSA77RF37-YPB71M4，JCSA77RF37-YPB80M4，JCSA77RF37-YPB90S4，JCSA77RF37-YPE63M4，JCSA77RF37-YPE71M4，JCSA77RF37-YPE80M4，JCSA77RF37-YPE90S4，JCSA77RF37-YSA63M4，JCSA77RF37-YSA71M4，JCSA77RF37-YSA80M4，JCSA77RF37-YSA90S4，JCSA77RF37-YVB63M4，JCSA77RF37-YVB71M4，JCSA77RF37-YVB80M4，JCSA77RF37-YVB90S4，JCSA77RF37-YVP63M4，JCSA77RF37-YVP71M4，JCSA77RF37-YVP80M4，JCSA77RF37-YVP90S4，NSA77R37-Y63M4，NSA77R37-Y71M4，NSA77R37-Y80M4，NSA77R37-Y90M4，NSA77RF37-Y0.12KW，NSA77RF37-Y0.18KW，NSA77RF37-Y0.25KW，NSA77RF37-Y0.37KW，NSA77RF37-Y0.55KW，NSA77RF37-Y0.75KW，NSA77RF37-Y1.1KW，NSA77RF37-Y63M4，NSA77RF37-Y71M4，NSA77RF37-Y80M4，NSA77RF37-Y90M4，NSA77RF37-YB63M4，NSA77RF37-YB71M4，NSA77RF37-YB80M4，NSA77RF37-YB90S4，NSA77RF37-YDP63M4，NSA77RF37-YDP71M4，NSA77RF37-YDP80M4，NSA77RF37-YDP90S4，NSA77RF37-YE63M4，NSA77RF37-YE71M4，NSA77RF37-YE80M4，NSA77RF37-YE90S4，NSA77RF37-YEJ63M4，NSA77RF37-YEJ71M4，NSA77RF37-YEJ80M4，NSA77RF37-YEJ90S4，NSA77RF37-YEJB63M4，NSA77RF37-YEJB71M4，NSA77RF37-YEJB80M4，NSA77RF37-YEJB90S4，NSA77RF37-YP63M4，NSA77RF37-YP71M4，NSA77RF37-YP80M4，NSA77RF37-YP90S4，NSA77RF37-YPB63M4，NSA77RF37-YPB71M4，NSA77RF37-YPB80M4，NSA77RF37-YPB90S4，NSA77RF37-YPE63M4，NSA77RF37-YPE71M4，NSA77RF37-YPE80M4，NSA77RF37-YPE90S4，NSA77RF37-YSA63M4，NSA77RF37-YSA71M4，NSA77RF37-YSA80M4，NSA77RF37-YSA90S4，NSA77RF37-YVB63M4，NSA77RF37-YVB71M4，NSA77RF37-YVB80M4，NSA77RF37-YVB90S4，NSA77RF37-YVP63M4，NSA77RF37-YVP71M4，NSA77RF37-YVP80M4，NSA77RF37-YVP90S4，SWA77RW37-Y63M4，SWA77RW37-Y71M4，SWA77RW37-Y80M4，SWA77RW37-Y90M4，SWA77RWF37-Y0.12KW，SWA77RWF37-Y0.18KW，SWA77RWF37-Y0.25KW，SWA77RWF37-Y0.37KW，SWA77RWF37-Y0.55KW，SWA77RWF37-Y0.75KW，SWA77RWF37-Y1.1KW，SWA77RWF37-Y63M4，SWA77RWF37-Y71M4，SWA77RWF37-Y80M4，SWA77RWF37-Y90M4，SWA77RWF37-YB63M4，SWA77RWF37-YB71M4，SWA77RWF37-YB80M4，SWA77RWF37-YB90S4，SWA77RWF37-YDP63M4，SWA77RWF37-YDP71M4，SWA77RWF37-YDP80M4，SWA77RWF37-YDP90S4，SWA77RWF37-YE63M4，SWA77RWF37-YE71M4，SWA77RWF37-YE80M4，SWA77RWF37-YE90S4，SWA77RWF37-YEJ63M4，SWA77RWF37-YEJ71M4，SWA77RWF37-YEJ80M4，SWA77RWF37-YEJ90S4，SWA77RWF37-YEJB63M4，SWA77RWF37-YEJB71M4，SWA77RWF37-YEJB80M4，SWA77RWF37-YEJB90S4，SWA77RWF37-YP63M4，SWA77RWF37-YP71M4，SWA77RWF37-YP80M4，SWA77RWF37-YP90S4，SWA77RWF37-YPB63M4，SWA77RWF37-YPB71M4，SWA77RWF37-YPB80M4，SWA77RWF37-YPB90S4，SWA77RWF37-YPE63M4，SWA77RWF37-YPE71M4，SWA77RWF37-YPE80M4，SWA77RWF37-YPE90S4，SWA77RWF37-YSA63M4，SWA77RWF37-YSA71M4，SWA77RWF37-YSA80M4，SWA77RWF37-YSA90S4，SWA77RWF37-YVB63M4，SWA77RWF37-YVB71M4，SWA77RWF37-YVB80M4，SWA77RWF37-YVB90S4，SWA77RWF37-YVP63M4，SWA77RWF37-YVP71M4，SWA77RWF37-YVP80M4，SWA77RWF37-YVP90S4，SA79R39-Y63M4，SA79R39-Y71M4，SA79R39-Y80M4，SA79R39-Y90M4，SA79RF39-Y0.12KW，SA79RF39-Y0.18KW，SA79RF39-Y0.25KW，SA79RF39-Y0.39KW，SA79RF39-Y0.55KW，SA79RF39-Y0.75KW，SA79RF39-Y1.1KW，SA79RF39-Y63M4，SA79RF39-Y71M4，SA79RF39-Y80M4，SA79RF39-Y90M4，SA79RF39-YB63M4，SA79RF39-YB71M4，SA79RF39-YB80M4，SA79RF39-YB90S4，SA79RF39-YDP63M4，SA79RF39-YDP71M4，SA79RF39-YDP80M4，SA79RF39-YDP90S4，SA79RF39-YE63M4，SA79RF39-YE71M4，SA79RF39-YE80M4，SA79RF39-YE90S4，SA79RF39-YEJ63M4，SA79RF39-YEJ71M4，SA79RF39-YEJ80M4，SA79RF39-YEJ90S4，SA79RF39-YEJB63M4，SA79RF39-YEJB71M4，SA79RF39-YEJB80M4，SA79RF39-YEJB90S4，SA79RF39-YP63M4，SA79RF39-YP71M4，SA79RF39-YP80M4，SA79RF39-YP90S4，SA79RF39-YPB63M4，SA79RF39-YPB71M4，SA79RF39-YPB80M4，SA79RF39-YPB90S4，SA79RF39-YPE63M4，SA79RF39-YPE71M4，SA79RF39-YPE80M4，SA79RF39-YPE90S4，SA79RF39-YSA63M4，SA79RF39-YSA71M4，SA79RF39-YSA80M4，SA79RF39-YSA90S4，SA79RF39-YVB63M4，SA79RF39-YVB71M4，SA79RF39-YVB80M4，SA79RF39-YVB90S4，SA79RF39-YVP63M4，SA79RF39-YVP71M4，SA79RF39-YVP80M4，SA79RF39-YVP90S4。

SA79R39減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ccmqzx.com/product/list-saxiliejiansuji-cn.html

推薦型號：S79減速機
